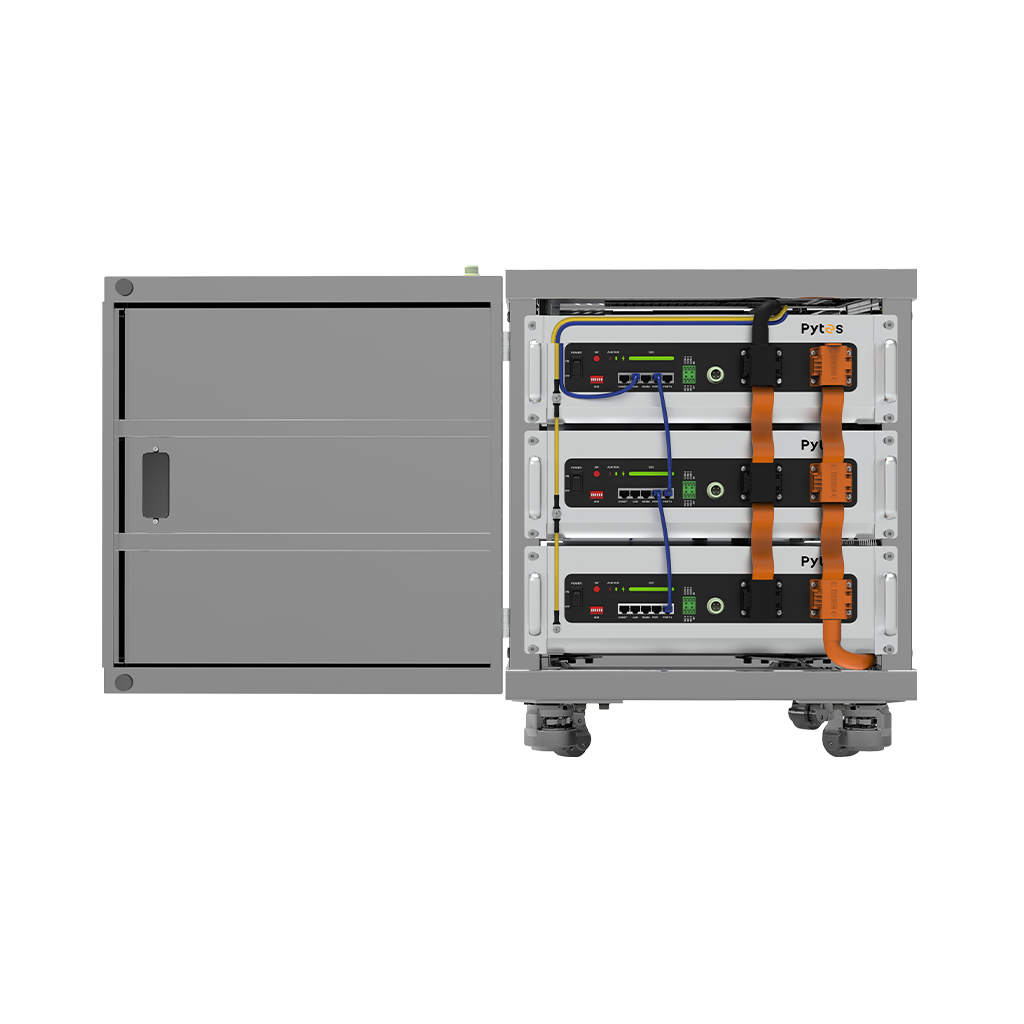

V5°

Proven across thousands of installations, the V5° is your Swiss Army knife of energy storage. Scalable from 5kWh to 492kWh, it thrives in homes, agriculture, mobile applications, and industrial builds

Battery Model V5°/V5°α
Electrical
Chemistry LFP
Nominal Voltage 51.2V
Voltage Range 100Ah
Nominal Energy 47.5V~57.6V
Recommended Charge/Discharge Current 75A
Max Continuous Charge/Discharge Current 100A
Peak Charge/Discharge Current

101A~120A (3min);
121A~180A (15sec)
General
Connection Options

V5°: PHOENIX M6 Bolt
V5°α: Amphenol SurLok Plus 8.0mm
Chemistry LFP
Communication Protocol CAN/RS485

Dimensions(L x W x H)

 442*530*140mm/17.40*20.87*5.51inch(3.2U)
Weight 44kg/97lbs
Ambient Temperature -10°C~50°C/14°F~122°F
Cycle Life* ≥6000 Cycles
Warranty 10 Years
Scalability

16 pcs (81.92kWh) in a group
6 groups (491.52kWh) in a system w/a Hub
Mounting Method Wall / Ground (W/ Optional Battery Tray)
Heating Pad (Integrated) Temperature Rise: 14.4°F/h / 8°C/h

Add-on Features
WIFI Connection Remote monitoring and upgrade
Heating Pad

Temperature Rise: 10°C/h / 18°F/h
Operation Temperature: -18°C~10°C/-0.40°F~50°F


Certifications
UL9540 Ed.2 (2020), UL9540A, UL1973, CEC, SGIP, CE, IEC62619, UN38.3
