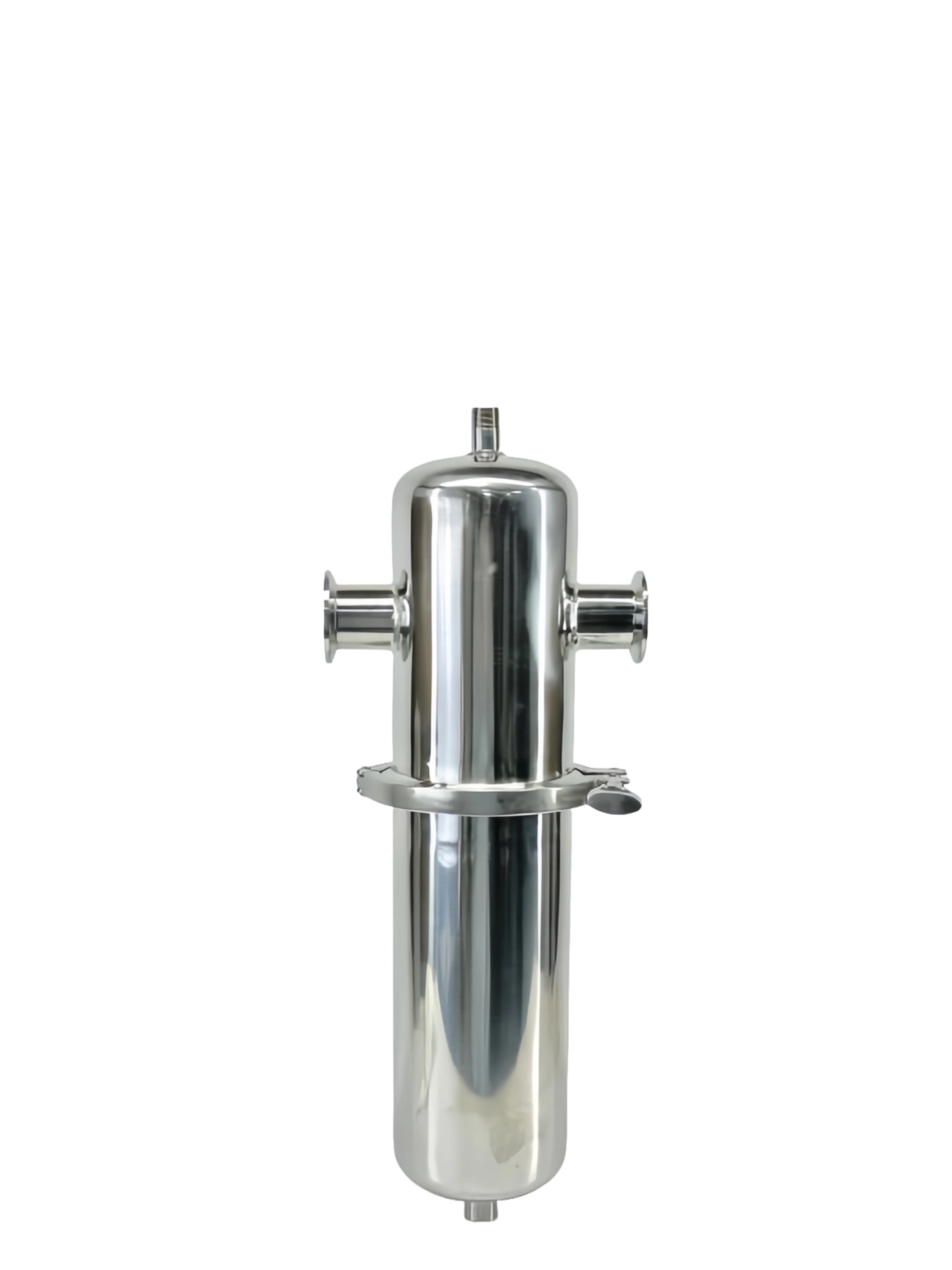

Stainless Steel Sterilizing Filter for Compressed Air Systems 1.0MPa

The Stainless Steel Sterilizing Filter is a high-performance terminal filtration solution designed for industries requiring absolute air sterility and contamination control. Manufactured with SUS304/316 stainless steel and equipped with advanced PTFE membrane filtration technology, it delivers reliable sterile air for critical production environments in pharmaceuticals, semiconductors, food processing, and fine chemical applications.

Product Overview

This sterilizing filter is engineered to operate under a working pressure of 1.0MPa, providing a robust and stable filtration system for compressed air sterilization processes. Both the internal and external surfaces are precision-polished to Ra0.3, ensuring a smooth, residue-free structure that meets stringent hygienic requirements.

The filter element utilizes high-efficiency hydrophobic PTFE folded membrane technology, designed for sterile-grade air filtration. It has passed 100% DOP integrity testing, ensuring consistent and validated performance in critical applications.

Absolute Sterilization Performance

Filtration accuracy reaches 0.01μm, with a logarithmic reduction value ≥6 (99.9999% efficiency). This ensures near-total removal of bacteria, microorganisms, and bacteriophages from compressed air systems.

Efficiency rating is ≥99.999%, providing absolute sterility assurance for sensitive production environments where air purity directly impacts product safety and quality.

Certification and Compliance Standards

The stainless steel housing and filter materials have been tested by SGS, an internationally recognized third-party certification organization, confirming compliance with food-grade and pharmaceutical-grade safety requirements.

The product meets multiple global regulatory standards, including:

FDA 21 CFR 177.2600
USP Class VI
cGMP
GMP
ISO 14644 cleanroom standards

These certifications ensure full compliance with international pharmaceutical and clean manufacturing regulations.

Advanced Filter Structure and Integrity

The filter element is constructed using high-strength hydrophobic PTFE (polytetrafluoroethylene) membrane with reinforced multilayer support, ensuring durability and resistance to rupture.

It supports repeated online steam sterilization (SIP), making it suitable for continuous sterile production systems.

Each unit is supplied with complete bubble point test data and filter integrity validation services, ensuring full traceability and operational reliability.

Core Advantages

Absolute Sterility Assurance
Provides high-efficiency filtration with 0.01μm precision, effectively eliminating all microbial contamination in compressed air systems.

Long Service Life and Cost Efficiency
The durable filter design reduces replacement frequency and minimizes waste disposal costs, lowering total cost of ownership.

Low Pressure Drop Design
Optimized airflow structure reduces pressure loss, improving energy efficiency and reducing compressor load during operation.

High Durability and Chemical Resistance
The PTFE membrane structure is highly resistant to heat, chemicals, and pressure fluctuations, ensuring stable long-term performance.

Technical Characteristics

Filter Material
Imported hydrophobic PTFE membrane with multilayer support protection for enhanced structural stability.

Shell Material
SUS304/316L stainless steel with BA/EP grade polishing, surface roughness Ra ≤ 0.6μm, ensuring ultra-smooth, contamination-free flow paths.

Sealing Material
PTFE seals with excellent heat resistance and chemical corrosion resistance, suitable for aggressive industrial environments.

Connection Type
Sanitary chuck (clamp) connection for easy installation and hygienic system integration.

Maximum Operating Temperature
Up to 125°C, supporting high-temperature sterilization and online steam (SIP) processes.

Industry Applications

This sterilizing filter is widely used in:

Pharmaceutical manufacturing and sterile filling systems
Semiconductor cleanroom air systems
Food and beverage aseptic production lines
Fine chemical processing industries
Biotechnology and laboratory environments

Conclusion

The Stainless Steel Sterilizing Filter delivers a fully validated sterile air solution designed for the most demanding industrial environments. With ultra-fine 0.01μm filtration, full regulatory compliance, and robust stainless steel construction, it ensures absolute air purity while improving system efficiency and reducing operational costs.
