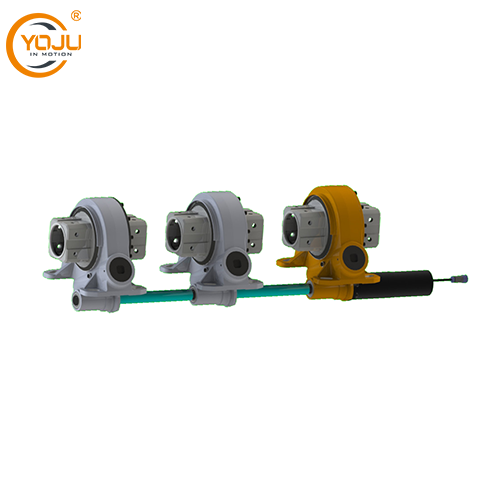

FM6D Slewing Drive for Solar Tracking System
Our slewing drives harness the principles of axial movement to generate robust radial torque, making them ideal for solar tracking systems that require precise positioning to optimize energy capture.
FM Series Performance Parameters:
| Output Speed | Holding Torque | Rated Output Torque | Output Torque (Max.) | Current | Gear Ratio | Tracking Precision | IP Class | Temperature |
| 0.019RPM | 25*3 KN.M | 3500*3 N.M | 6000*3 N.M | ≈12A | 464:1 | ≤0.3° | IP 65 | -35~+70℃ |
| 18432*3 Ibf.Ft | 2583*3 Ibf.Ft | 4428*3 Ibf.Ft |
ONE SET MOTORIZED SLEWING DRIVE (3 UNITS) PARAMERERS
