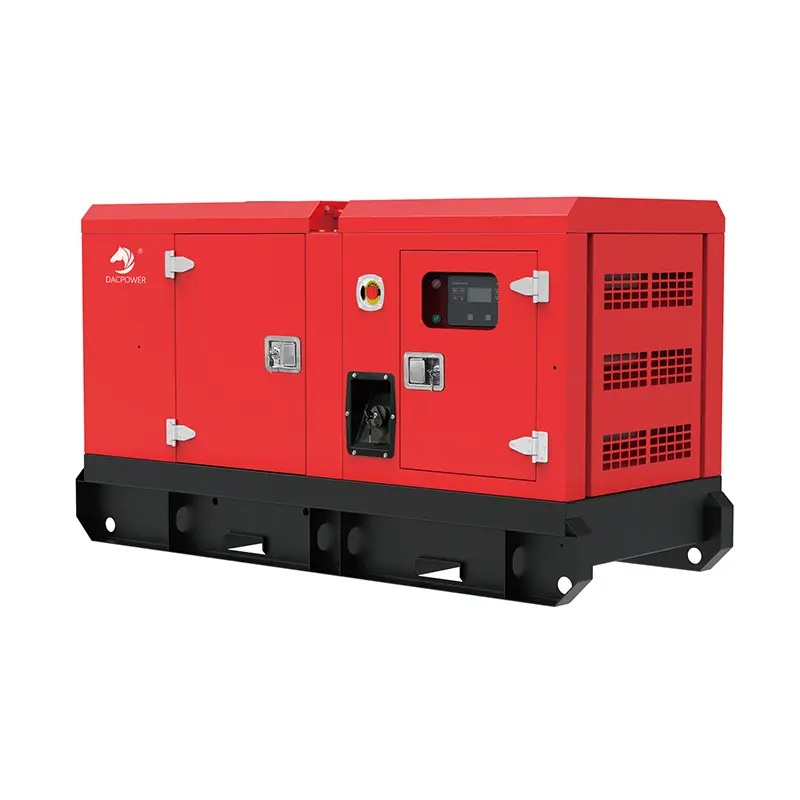

Cummins DCEC series diesel generator sets
CUMMINS series gen-sets adopt CUMMINS engines,with compact structure, large power, reliable capability, 24VDC working voltage for control system, adopt circumvolve fuel filter&oil filter element, dry air cleaner, electronic speed regulation control system.
Cummins engines have the good smooth working performance. And with many maintenance stations all around the world, the users can get the technical service easily.
Technical Data
|
50HZ |
||||||||||||
|
Genset Performance |
Engine Performance |
Dimension(L*W*H) |
||||||||||
|
Genset Model |
Prime Power |
Standby Power |
Engine model |
Speed |
Prime power |
Fuel Cons |
Cylinder- |
Displacement |
Open Type |
Silent Type |
||
|
KW |
KVA |
KW |
KVA |
rpm |
KW |
L/H |
MM |
L |
CM |
CM |
||
|
DAC-C22 |
16 |
20 |
18 |
22 |
4B3.9-G11 |
1500 |
20 |
5.3 |
4L-102*120 |
3.9 |
162*84*125 |
230*102*150 |
|
DAC-C25 |
18 |
22.5 |
20 |
25 |
4B3.9-G11 |
1500 |
20 |
5.7 |
4L-102*120 |
3.9 |
162*84*125 |
230*102*150 |
|
DAC-C28 |
20 |
25 |
22 |
28 |
4B3.9-G12 |
1500 |
27 |
6.5 |
4L-102*120 |
3.9 |
162*84*125 |
230*102*150 |
|
DAC-C30 |
22 |
27.5 |
24 |
30 |
4B3.9-G12 |
1500 |
27 |
7.1 |
4L-102*120 |
3.9 |
162*84*125 |
230*102*150 |
|
DAC-C33 |
24 |
30 |
26 |
33 |
4B3.9-G12 |
1500 |
27 |
7.4 |
4L-102*120 |
3.9 |
162*84*125 |
230*102*150 |
|
DAC-C44 |
32 |
40 |
35 |
44 |
4BT3.9-G1 |
1500 |
36 |
10 |
4L-102*120 |
3.9 |
168*84*125 |
230*102*150 |
|
DAC-C44 |
32 |
40 |
35 |
44 |
4BT3.9-G2 |
1500 |
36 |
9.3 |
4L-102*120 |
3.9 |
168*84*125 |
230*102*150 |
|
DAC-C55 |
40 |
50 |
44 |
55 |
4BTA3.9-G2 |
1500 |
50 |
11.2 |
4L-102*120 |
3.9 |
175*90*125 |
230*102*150 |
|
DAC-C66 |
48 |
60 |
53 |
66 |
4BTA3.9-G2 |
1500 |
50 |
14.1 |
4L-102*120 |
3.9 |
183*90*125 |
230*102*150 |
|
DAC-C72 |
52 |
65 |
57 |
72 |
4BTA3.9-G11 |
1500 |
70 |
14.9 |
4L-102*120 |
3.9 |
187*90*125 |
240*102*150 |
|
DAC-C80 |
58 |
72.5 |
64 |
80 |
4BTA3.9-G11 |
1500 |
70 |
16 |
4L-102*120 |
3.9 |
187*90*125 |
240*102*150 |
|
DAC-C88 |
64 |
80 |
70 |
88 |
4BTA3.9-G11 |
1500 |
70 |
17.6 |
4L-102*120 |
3.9 |
187*90*125 |
240*102*150 |
|
DAC-C93 |
68 |
85 |
75 |
94 |
6BT5.9-G1 |
1500 |
86 |
18.6 |
6L-102*120 |
5.9 |
220*90*140 |
272*108*152 |
|
DAC-C93 |
68 |
85 |
75 |
94 |
6BT5.9-G2 |
1500 |
86 |
19 |
6L-102*120 |
5.9 |
220*90*140 |
272*108*152 |
|
DAC-C100 |
72 |
90 |
79 |
99 |
6BT5.9-G1 |
1500 |
86 |
20.5 |
6L-102*120 |
5.9 |
220*90*140 |
272*108*152 |
|
DAC-C100 |
72 |
90 |
79 |
99 |
6BT5.9-G2 |
1500 |
86 |
22 |
6L-102*120 |
5.9 |
220*90*140 |
272*108*152 |
|
DAC-C110 |
80 |
100 |
88 |
110 |
6BT5.9-G1 |
1500 |
86 |
24.5 |
6L-102*120 |
5.9 |
220*100*140 |
272*108*152 |
|
DAC-C110 |
80 |
100 |
88 |
110 |
6BT5.9-G2 |
1500 |
86 |
24 |
6L-102*120 |
5.9 |
220*100*140 |
272*108*152 |
|
DAC-C132 |
96 |
120 |
106 |
132 |
6BTA5.9-G2 |
1500 |
106 |
27 |
6L-102*120 |
5.9 |
220*100*140 |
272*108*152 |
|
DAC-C150 |
108 |
135 |
119 |
149 |
6BTAA59-G2 |
1500 |
120 |
30 |
6L-102*120 |
5.9 |
230*100*140 |
290*108*157 |
|
DAC-C165 |
120 |
150 |
132 |
165 |
6BTAA5.9-G12 |
1500 |
140 |
32.5 |
6L-102*120 |
5.9 |
240*100*140 |
300*108*157 |
|
DAC-C175 |
128 |
160 |
141 |
176 |
6BTAA5.9-G12 |
1500 |
140 |
34 |
6L-102*120 |
5.9 |
240*100*140 |
300*108*157 |
|
DAC-C200 |
144 |
180 |
158 |
198 |
6CTA8.3-G1 |
1500 |
163 |
42 |
6L-114*135 |
8.3 |
242*100*150 |
320*110*177 |
|
DAC-C200 |
144 |
180 |
158 |
198 |
6CTA8.3-G2 |
1500 |
163 |
42 |
6L-114*135 |
8.3 |
242*100*150 |
320*110*177 |
|
DAC-C220 |
160 |
200 |
176 |
220 |
6CTAA8.3-G2 |
1500 |
183 |
45 |
6L-114*135 |
8.3 |
248*100*156 |
350*120*185 |
|
DAC-C275 |
200 |
250 |
220 |
275 |
6LTAA8.9-G2 |
1500 |
220 |
53 |
6L-114*145 |
8.9 |
262*100*164 |
360*120*185 |
|
DAC-C300 |
220 |
275 |
242 |
303 |
6LTAA9.5-G3 |
1500 |
250 |
58 |
6L-114*145 |
9.5 |
267*100*164 |
370*120*185 |
|
DAC-C350 |
250 |
312.5 |
275 |
344 |
6LTAA9.5-G1 |
1500 |
290 |
70 |
6L-114*145 |
9.5 |
267*110*164 |
370*130*185 |
|
DAC-C413 |
300 |
375 |
330 |
413 |
6ZTAA13-G3 |
1500 |
340 |
76.5 |
6L-130*163 |
13 |
300*138*200 |
441*173*223 |
|
DAC-C450 |
320 |
400 |
352 |
440 |
6ZTAA13-G2 |
1500 |
390 |
89 |
6L-130*163 |
13 |
300*138*200 |
441*173*223 |
|
DAC-C500 |
360 |
450 |
396 |
495 |
QSZ13-G2 |
1500 |
400 |
70.4 |
6L-130*163 |
13 |
320*138*200 |
461*173*223 |
|
DAC-C550 |
400 |
500 |
440 |
550 |
QSZ13-G3 |
1500 |
450 |
101 |
6L-130*163 |
13 |
320*138*200 |
461*173*223 |
|
60HZ |
||||||||||||
|
Genset Performance |
Engine Performance |
Dimension(L*W*H) |
||||||||||
|
Genset Model |
Prime Power |
Standby Power |
Engine model |
Speed |
Prime power |
Fuel Cons |
Cylinder- |
Displacement |
Open Type |
Silent Type |
||
|
KW |
KVA |
KW |
KVA |
rpm |
KW |
L/H |
MM |
L |
CM |
CM |
||
|
DAC-C25 |
18 |
22.5 |
19.8 |
24.75 |
4B3.9-G11 |
1800 |
23 |
6.4 |
4L-102*120 |
3.9 |
162*84*125 |
230*102*150 |
|
DAC-C28 |
20 |
25 |
22 |
27.5 |
4B3.9-G11 |
1800 |
23 |
7.1 |
4L-102×120 |
3.9 |
162*84*125 |
230*102*150 |
|
DAC-C33 |
24 |
30 |
26.4 |
33 |
4B3.9-G12 |
1800 |
33 |
7.8 |
4L-102*120 |
3.9 |
162*84*125 |
230*102*150 |
|
DAC-C41 |
30 |
37.5 |
33 |
41.25 |
4B3.9-G12 |
1800 |
33 |
9.4 |
4L-102*120 |
3.9 |
162*84*125 |
230*102*150 |
|
DAC-C44 |
32 |
40 |
35.2 |
44 |
4BT3.9-G2 |
1800 |
40 |
9.6 |
4L-102*120 |
3.9 |
162*84*125 |
230*102*150 |
|
DAC-C50 |
36 |
45 |
39.6 |
49.5 |
4BT3.9-G2 |
1800 |
40 |
10.3 |
4L-102×120 |
3.9 |
168*84*125 |
230*102*150 |
|
DAC-C55 |
40 |
50 |
44 |
55 |
4BTA3.9-G2 |
1800 |
60 |
11.5 |
4L-102*120 |
3.9 |
168*84*125 |
230*102*150 |
|
DAC-C66 |
48 |
60 |
52.8 |
66 |
4BTA3.9-G2 |
1800 |
60 |
13.5 |
4L-102*120 |
3.9 |
175*90*125 |
230*102*150 |
|
DAC-C75 |
54 |
67.5 |
59.4 |
74.25 |
4BTA3.9-G2 |
1800 |
60 |
15.5 |
4L-102*120 |
3.9 |
183*90*125 |
230*102*150 |
|
DAC-C80 |
58 |
72.5 |
63.8 |
79.75 |
4BTA3.9-G11 |
1800 |
80 |
16.3 |
4L-102×120 |
3.9 |
187*90*125 |
240*102*150 |
|
DAC-C93 |
68 |
85 |
74.8 |
93.5 |
4BTA3.9-G11 |
1800 |
80 |
18.8 |
4L-102*120 |
3.9 |
187*90*125 |
240*102*150 |
|
DAC-C100 |
72 |
90 |
79.2 |
99 |
4BTA3.9-G11 |
1800 |
80 |
20.1 |
4L-102*120 |
3.9 |
187*90*125 |
240*102*150 |
|
DAC-C110 |
80 |
100 |
88 |
110 |
6BT5.9-G2 |
1800 |
100 |
23.5 |
6L-102×120 |
5.9 |
220*90*140 |
272*108*152 |
|
DAC-C125 |
90 |
112.5 |
99 |
123.75 |
6BT5.9-G2 |
1800 |
100 |
29 |
6L-102×120 |
5.9 |
220*90*140 |
272*108*152 |
|
DAC-C132 |
96 |
120 |
105.6 |
132 |
6BTA5.9-G2 |
1800 |
120 |
27.8 |
6L-102×120 |
5.9 |
220*100*140 |
272*108*152 |
|
DAC-C150 |
108 |
135 |
118.8 |
148.5 |
6BTA5.9-G2 |
1800 |
120 |
31 |
6L-102*120 |
5.9 |
220*100*140 |
272*108*152 |
|
DAC-C165 |
120 |
150 |
132 |
165 |
6BTAA5.9-G2 |
1800 |
132 |
34 |
6L-102*120 |
5.9 |
230*100*140 |
290*108*157 |
|
DAC-C185 |
135 |
168 |
148.5 |
185.625 |
6BTAA5.9-G12 |
1800 |
150 |
38 |
6L-102*120 |
5.9 |
240*100*140 |
300*108*157 |
|
DAC-C206 |
150 |
187.5 |
165 |
206.25 |
6CTA8.3-G2 |
1800 |
170 |
44 |
6L-114×135 |
8.3 |
242*100*150 |
320*110*177 |
|
DAC-C235 |
171 |
214 |
188.1 |
235.125 |
6CTAA8.3-G2 |
1800 |
190 |
49 |
6L-114*135 |
8.3 |
248*100*156 |
350*120*185 |
|
DAC-C275 |
200 |
250 |
220 |
275 |
6LTAA8.9-G2 |
1800 |
235 |
59 |
6L-114*145 |
8.9 |
262*100*164 |
360*120*185 |
|
DAC-C300 |
220 |
275 |
242 |
302.5 |
6LTAA8.9-G3 |
1800 |
255 |
63 |
6L-114×145 |
8.9 |
262*100*164 |
360*120*185 |
|
DAC-C330 |
240 |
300 |
264 |
330 |
6LTAA9.5-G3 |
1800 |
265 |
65 |
6L-114×145 |
9.5 |
267*100*164 |
370*120*185 |
|
DAC-C350 |
250 |
312.5 |
275 |
343.75 |
6LTAA9.5-G1 |
1800 |
280 |
68 |
6L-114×145 |
9.5 |
267*110*164 |
370*130*185 |
|
DAC-C413 |
300 |
375 |
330 |
412.5 |
6ZTAA13-G3 |
1800 |
340 |
81 |
6L-130×163 |
13 |
300*138*200 |
441*173*223 |
|
DAC-C450 |
320 |
400 |
352 |
440 |
6ZTAA13-G2 |
1800 |
390 |
89 |
6L-130×163 |
13 |
300*138*200 |
441*173*223 |
|
DAC-C500 |
360 |
450 |
396 |
495 |
QSZ13-G2 |
1800 |
408 |
73.6 |
6L-130*163 |
13 |
300*138*200 |
441*173*223 |
|
DAC-C550 |
400 |
500 |
440 |
550 |
QSZ13-G3 |
1800 |
450 |
101 |
6L-130*163 |
13 |
300*138*200 |
441*173*223 |
Product Description
Cummins engines equipped with Cummins DCEC series generator sets are known for their excellent performance, durability and fuel efficiency. These engines are compact and have high power output, making them ideal for a variety of applications.
Cummins DCEC series generator sets is that the operating voltage of the control system is 24VDC. This ensures stable and efficient operation of the generator set, prevents power fluctuations, and ensures reliable power supply.
In addition, these generator sets are equipped with rotating fuel and oil filter elements and dry air filters.This advanced filtration system ensures that the engine is well protected and performs optimally even under harsh operating conditions.
