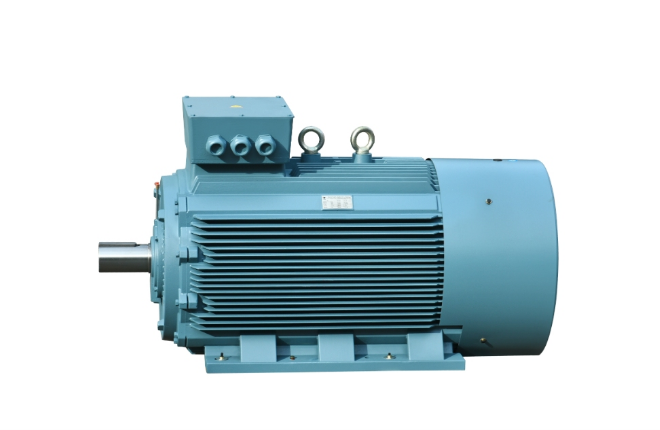

YE3 Three-Phase Asynchronous Motor

The YE3 Series High-Efficiency Three-Phase Asynchronous Motors are independently designed and manufactured by our company to meet the growing demand for energy-saving industrial drive solutions. The motors comply with GB/T 28575 Technical Conditions for YE3 Series (IP55) Three-Phase Asynchronous Motors (Frame Sizes 63–355) and JB/T 10868 Technical Conditions for YE3 Series (IP55) Three-Phase Asynchronous Motors (Frame Sizes 355–400).

The efficiency ratings satisfy the Grade 3 energy efficiency requirements of GB18613-2020 and are fully aligned with the IE3 efficiency class specified in IEC 60034-30, the international standard for single-speed three-phase squirrel-cage induction motors.

Designed for reliable and economical operation, the YE3 series offers excellent electrical and mechanical performance with outstanding energy efficiency. These motors feature a generous temperature rise margin, extended service life, low vibration, smooth starting performance, and dependable long-term operation. Their optimized structure and modern appearance allow them to directly replace traditional Y, YGM, YGM2, and YE2 series low-voltage three-phase asynchronous motors without requiring major system modifications.

The YE3 series is widely used to drive a variety of industrial equipment, including:

• Water pumps

• Industrial fans

• Air compressors

• Conveyor systems

• General machinery

• Production equipment

They are extensively applied in industrial automation, energy-saving upgrades, environmental protection projects, municipal engineering, and national water conservancy infrastructure.

Typical Application Scenarios

The YE3 series motors are suitable for a broad range of industrial applications, including:

• Water supply and drainage systems

• HVAC equipment

• Mining machinery

• Petrochemical plants

• Metallurgical equipment

• Manufacturing production lines

• Agricultural machinery

• Power generation facilities

• Environmental protection equipment

• Building services and infrastructure

Their high efficiency and reliable performance make them an ideal choice for continuous-duty industrial operations.

Technical Specifications

The YE3 series is available in a comprehensive range of specifications to meet various operating requirements.

Main Features

• Rated power range from 0.18 kW to 630 kW

• Rated voltage: 380V / 660V (depending on model)

• Multiple synchronous speeds available:

• 3000 r/min (2-pole)

• 1500 r/min (4-pole)

• 1000 r/min (6-pole)

• 750 r/min (8-pole)

• 600 r/min (10-pole)

• Energy efficiency up to 96.0%

• IE3 premium efficiency performance

• Protection degree: IP55

• Stable starting torque and high overload capability

• Low operating noise and vibration

• High power factor

• Continuous-duty S1 operation

• Suitable for a wide range of industrial transmission applications

Detailed performance data, including rated current, speed, efficiency, power factor, starting characteristics, maximum torque, noise level, and weight, are available for each motor model to facilitate accurate equipment selection.
