Laminated busbar is a connection bar with a multi-layer composite structure.

Laminated busbar is a connection bar with a multi-layer composite structure. Compared to the traditional complex wiring methods used, laminated busbar provides a highly technical and easily designed distribution system with a clear structure. It is characterized by repeatable electrical performance, low inductive impedance, high interference immunity and high reliability, and can therefore used as an electrical connection component for some high-power modules.

Features

· Adopting integrated bending technology, the copper pillars at the IGBT contact are universal on both sides; solid insulation sealing, and the hole is filled with insulating materials to enhance the insulation performance; the IGBT adopts a notch design to enhance the installation characteristics and reduce the contact resistance

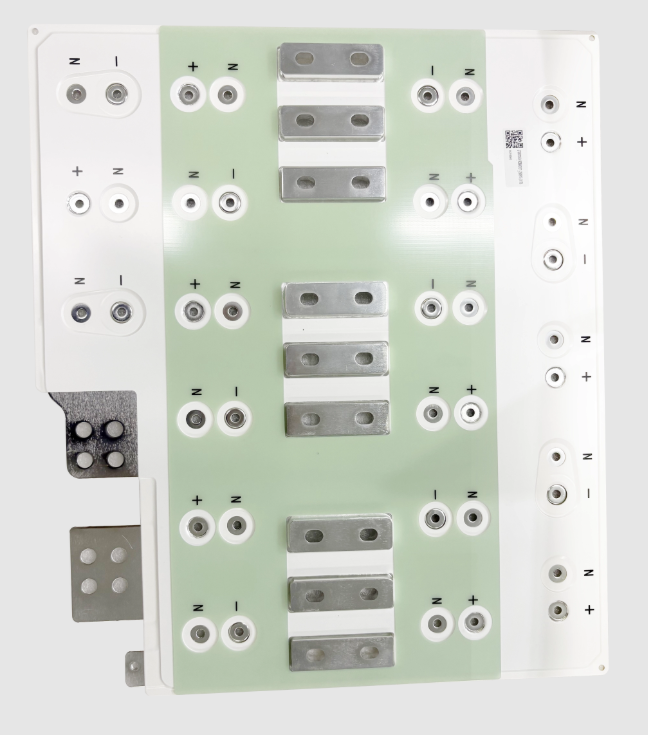

Wind Power Laminated Busbar
Item Parameters
Voltage 1100V DC
Current 1100A
Insulation withstand voltage 4.4KV -DC-60s, no breakdown, no flicker
Partial discharge ≤10PC @ 1000V AC
Wind Power Laminated Busbar
Item Parameters
Voltage 1100V DC
Current 800A
Insulation withstand voltage 3.5 KV -AC-60s, no breakdown, no flicker
Partial discharge ≤10PC @ 1000V AC
Wind Power Laminated Busbar
Item Parameters
Voltage 1100V DC
Current 1100A
Insulation withstand voltage 4.4 KV -DC-60s, no breakdown, no flicker (leakage current ≤2mA)
Partial discharge ≤10PC @ 1000V AC
Wind Power Laminated Busbar
Item Parameters
Voltage 1100V
Current 1025A
Insulation withstand voltage 3.5 KV -DC-60s, no breakdown, no flicker
Partial discharge ＜10PC @ 1140V AC
