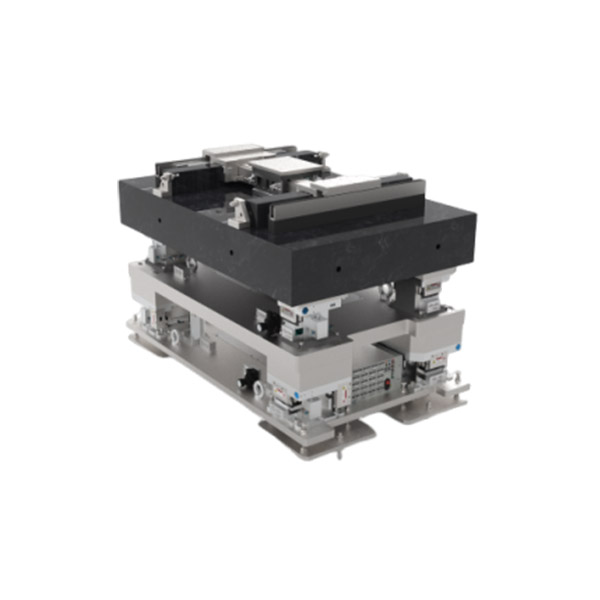

Two-Stage Vibration Damping Solution
The two-stage vibration damping series of active vibration dampers adopts multi-stage cascading of the SFT series, enabling synchronous and collaborative control of the two stages.
Introduction:
The two-stage vibration damping series of active vibration dampers adopts multi-stage cascading of the SFT series, enabling synchronous and collaborative control of the two stages. This design achieves superior vibration isolation performance compared to single-stage SFT series while ensuring effective suppression of motion shocks, addressing the application requirements in complex scenarios.
Specifications:
|
Model |
Two-Stage Isolators：SFT040A+SFT060A |
|
Passive Element |
Pneumatic Air Sping |
|
1st Stage System Load Capacity |
2400kg(5bar) |
|
2nd Stage System Load Capacity |
1600kg(5bar) |
|
Isolator Dimensions |
308*300*202（L*W*H mm） |
|
Isolator Weight |
36kg |
|
Degrees of Freedom |
6 |
|
Active Isolation Range |
0.8 ~ 150Hz |
|
Transmissibility |
≤-20dB@1Hz，≤-25B@2Hz，≤-35dB@5Hz，≤-45B@10Hz，≤-55dB@20Hz |
|
Max System Power |
1400W |
|
Applications |
Ultra Precision Metrology, Ultra Precision Static Vibration Isolation |
