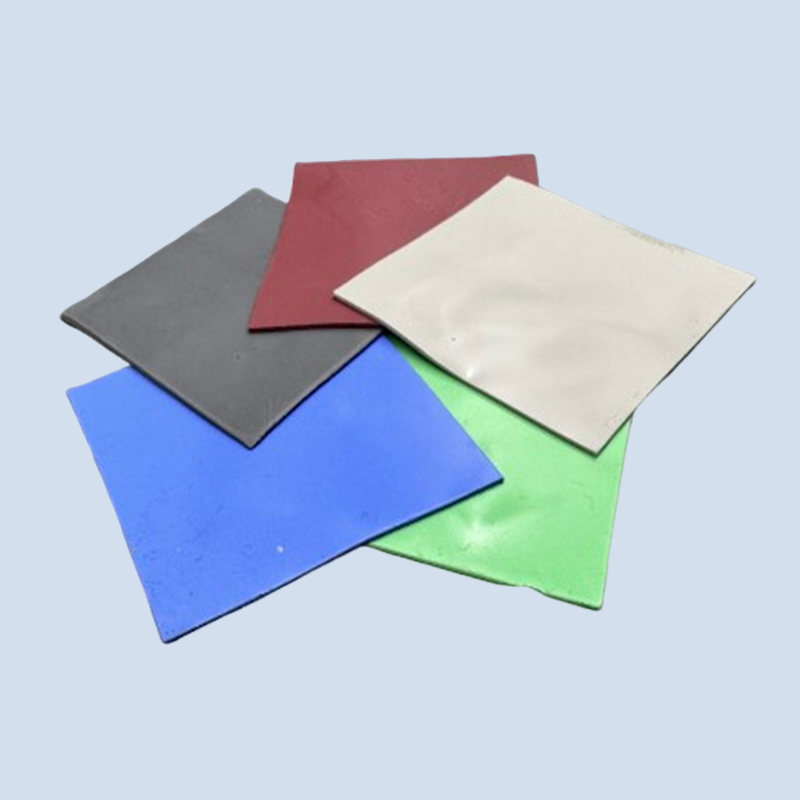

Thermal silicon pad

Thermal conductive silicone pad has certain flexibility, excellent
insulation, compressibility and natural viscosity on the surface. It is
specially produced for the design scheme of using the gap to transmit heat. It
can fill the gap and complete the heat transfer between the heating part and the
heat dissipation part. At the same time, it also plays the role of insulation
and shock absorption. It is of great manufacturability and usability, and has a
wide range of thickness application, which can meet the design requirements of
equipment miniaturization and, it is an excellent heat conduction filling
material and is widely used in electronic and electrical products.

Product Features

● Easy manual operation

● The same heat sink can be used for heating devices with different heights

● Low-cost thermal design solution

● Natural viscosity, clean surface, can be repeatedly disassembled and used

● Applicable to automation equipment

● High thermal conductivity, good insulation

Product Application

LED lighting

Backlight module

Switching power supply

Medical equipment

Communication equipment

LED TV

Mobile device

Video equipment

5G network products

Home appliances

PC server/workstation

Base station

Test Item	Unit	CP100	CP200	CP300	CP400	CP500	CP600	Test Method
Color	/	Light Gray	Gray, Blue	Grey, Blue	Green/Dark Gray/Blue	Pink,dark gray	dark gray	Visual
Thickness	mm	0.15~18mm	0.2~20mm	0.3~18mm	0.3~18mm	0.3~18mm	0.3~18mm	/
Specificgravity	g/cm3	1.9±0.1	2.4±0.1	2.8±0.1	3.2±0.1	3.3±0.1	3.3±0.1	ASTM D792
Hardness	Shore C	15~50	20~50	15~20	30~50	30~50	30~50	ASTM D2240
Tensile Strength	MPa	≥0.20	≥0.2	≥0.20	≥0.15	≥0.10	≥0.10	ASTM D412
Compressionrate	%	15~40	15-30	10~30	20~35	20~35	20~30	ASTM D412
Temperatureresistancerange	℃	-40~+150	-40~150	-40~+150	-40~+150	-40~+150	-40~+150	EN 344
Volumeresistance	Ω·m	≥1.0*10^13	≥1.0*1013	≥1.1*10^13	≥1.0*1013	≥1.0*1013	≥1.0*1013	ASTM D257
Withstand voltage	KV/mm	≥8	≥5.0	≥9	≥9	≥9	≥6	ASTM D149
Flameretardant rating	/	V-0	≥10	V-0	V-0	V-0	V-0	UL 94
Thermalconductivity	w/m.k	1.0±0.1	V0	3.15	4.0±0.4	5.0±0.5	6.0±0.6	ASTM D5470
Oil penetration rate	%	≤1.0	2.0±0.2	≤1.0	≤1.0	≤1.0	≤1.0	ASTM G120

Test Item	Unit	CP700	CP800	CP900	CP1000	CP12000	CP15000	Test Method
Color	/	Dark Gray	Dark Gray	Dark Gray	Dark Gray	Dark Gray	Dark Gray	Visual
Thickness	mm	0.3~18mm	0.3~18mm	0.5~5mm	0.5~5mm	0.5~5mm	0.5~5mm	/
Specificgravity	g/cm3	3.3±0.1	3.4±0.1	3.4±0.1	3.4±0.1	3.4±0.1	3.5±0.1	ASTM D792
Hardness	Shore C	35~50	35~50	35~50	35~50	35~50	35~50	ASTM D2240
Tensile Strength	MPa	≥0.10	≥0.10	≥0.10	≥0.10	≥0.10	≥0.10	ASTM D412
Compressionrate	%	5~20	5~15	5~15	5~15	5~20	5~15	ASTM D412
Temperatureresistancerange	℃	-40~+150	-40~+150	-40~+150	-40~+150	-40~+150	-40~+150	EN 344
Volumeresistance	Ω·m	≥1.0*10^13	≥1.0*10^13	≥1.0*10^13	≥1.0*1013	≥1.0*1013	≥1.0*1013	ASTM D257
Withstand voltage	KV/mm	≥6	≥6	≥9	≥7	≥6	≥6	ASTM D149
Flameretardant rating	/	V-0	V-0	V-0	V-0	V-0	V-0	UL 94
Thermalconductivity	w/m.k	7.0±0.7	8.0±0.8	9.0±0.9	10±1.0	12±1.2	15±1.5	ASTM D5470
Oil penetration rate	%	≤1.0	≤1.0	≤1.0	≤1.0	≤1.0	≤1.0	ASTM G120
