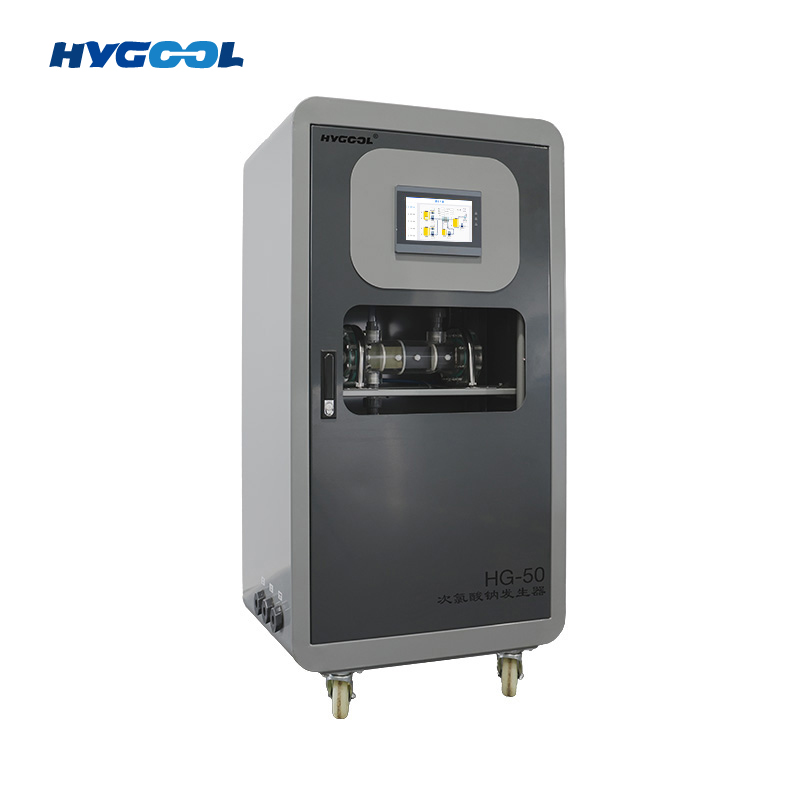

Split on site sodium hypochlorite generator

The Hygool Split-Type On-Site Sodium Hypochlorite Generator is designed to prepare sodium hypochlorite disinfectant on demand through the electrolysis of a salt solution. Using water and industrial-grade salt as raw materials, the system reduces dependence on the storage and handling of large quantities of externally supplied chemical disinfectants.

The equipment adopts low-voltage electrolysis technology and incorporates a secondary hydrogen venting treatment system to manage hydrogen generated during the electrolysis process. Its split-type configuration is suitable for water disinfection applications requiring on-site disinfectant production.

Key system components include a tubular electrolytic cell, TA1 titanium electrodes with a ruthenium-iridium oxide coating, and an acrylic cell structure designed for corrosion resistance. A PLC-based control system coordinates equipment operation, while the touchscreen LCD displays operating information and enables convenient parameter adjustment.

Key Features and Benefits

On-Site Disinfectant Production

Produces sodium hypochlorite from water and industrial-grade salt, supporting on-site preparation and reducing the need to store large quantities of purchased disinfectant chemicals.

Effective Disinfection

Sodium hypochlorite forms hypochlorous acid in water, providing an oxidizing and disinfecting effect against susceptible microorganisms, including bacteria, viruses, and fungi. Actual disinfection performance depends on concentration, contact time, water conditions, and the target organisms.

Corrosion-Resistant Electrolytic Cell

The tubular electrolytic cell uses an acrylic structure and TA1 titanium electrodes coated with ruthenium-iridium oxide. These components are selected for their corrosion resistance and suitability for electrolysis applications.

Hydrogen Venting Design

A secondary hydrogen venting treatment system is incorporated to manage hydrogen generated during electrolysis. Appropriate ventilation and installation measures remain essential for safe equipment operation.

PLC Control and Touchscreen Operation

The integrated PLC control system manages equipment operation. The touchscreen LCD provides access to operating information and allows operators to adjust available parameters through the control interface.

Practical Operating Costs

Industrial-grade salt serves as the primary consumable raw material, helping support economical on-site disinfectant production. Actual operating costs depend on salt consumption, electricity use, water quality, maintenance, and required disinfectant output.

Reduced Dependence on Stored Disinfectants

Producing disinfectant at the installation site can reduce reliance on bulk deliveries and storage of externally manufactured sodium hypochlorite solutions. Chemical handling, ventilation, and personal protective measures should follow the applicable operating requirements.

Site Preparation Requirements

The installation site should meet the following utility and environmental conditions before equipment commissioning.

Item	Requirement
Water Supply	Tap water pressure of at least 0.3 MPa
Water Flow Rate	At least 5 m³/h
Power Supply	220 V / 380 V AC, 50 Hz
Electrical Power	3 kW per set
Equipment Room	Maintain a dry, adequately ventilated environment
Lightning Protection	Provide suitable lightning protection facilities
Drainage	Install a drainage channel or ditch in the equipment room
Disinfectant Dosing Position	Pre-chlorination, post-chlorination, or the specified combined dosing arrangement, according to the treatment process
Mixing Contact Time	Ensure a disinfectant mixing/contact time of at least 30 minutes, as specified for the intended installation

Installation note: The required water flow, electrical configuration, dosing arrangement, and contact time should be confirmed against the selected model and the actual water treatment process. Hydrogen ventilation and electrical safety measures must comply with the applicable site requirements.

Product Specifications

Model	Selection Capacity (g/h)	Applicable Pool Volume (m³)	Dimensions (mm)
HG-50	50	50	550 × 500 × 1200
HG-100	100–200	100–200	750 × 500 × 1400
HG-200	100–200	100–200	750 × 500 × 1400
HG-300	300–500	300–500	900 × 550 × 1400
HG-400	300–500	300–500	900 × 550 × 1400
HG-500	300–500	300–500	900 × 550 × 1400
HG-600	500–800	500–800	900 × 600 × 1800
HG-700	500–800	500–800	900 × 600 × 1800
HG-800	500–800	500–800	900 × 600 × 1800
HG-900	800–1000	800–1000	1200 × 600 × 1800
HG-1000	800–1000	800–1000	1200 × 600 × 1800

Note: Capacity and pool-volume figures are reproduced from the supplied specifications. Confirm the rated output of each model and the required pool treatment capacity with Hygool before ordering, as the supplied model ranges overlap.

Application

The Hygool Split-Type On-Site Sodium Hypochlorite Generator is intended for water disinfection systems that require on-site sodium hypochlorite preparation.

Potential applications include:

Swimming pool water treatment
Commercial and public pool disinfection systems
Water treatment facilities using sodium hypochlorite
Other compatible water disinfection installations

Final model selection should be based on water volume, disinfection demand, operating schedule, water quality, and the required disinfectant dosage.

Model Selection and Technical Consultation

When selecting a Hygool on-site sodium hypochlorite generator, buyers should provide the pool or treatment system volume, daily operating hours, water supply conditions, available electrical supply, and required disinfection capacity.

These details help determine a suitable model and clarify the installation requirements before procurement.
