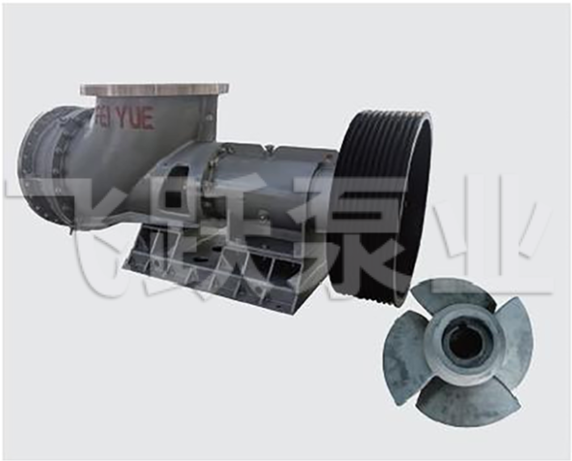

Silicon carbide composite forced circulation pump

The series of axial flow pumps are horizontal radially split, single-stage cantilever support structures; they have reasonable structure, good anti-cavitation performance…

Structure and performance

All parts in contact with the medium are made of non-metallic materials

The cantilever rotor adopts a front-opening structure, which is simple in structure and easy to maintain without disassembling the pump body and pipelines.

The pump body is supported in the middle, and the rotor has good centering.

Mechanical seals are used to ensure that the pump is leak-free, safe and reliable.

Direct connection, belt drive and reducer drive can be used

Materials used
Part name Material configuration Part name Material configuration
Pump body FPAcarbon fiber, rubber, graphite + 304 Shaft Dual-phase steel
Impeller Silicon carbide Machine seal Pressureless sintered carbonized silicon ssic
Short-circuit Silicon carbide + 304 Bearing body HT200
Bushing Non-metallic + Duplex steel Bearing Imported bearing
