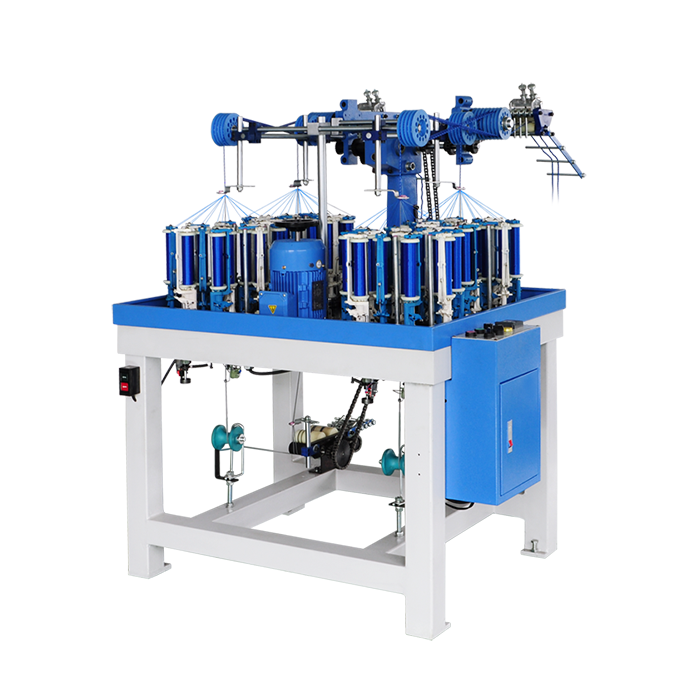

Series A Rope Braiding Machine(GB-16A04S)

The A Series braiding machine is suitable for braiding the fiber layer of various power cords and data cables. Thanks to its multi-head combined transmission structure, its production efficiency is significantly enhanced. Its mature and stable structural design and excellent, reliable quality make it the preferred equipment for batch production.

Model

GB-8/12/16A04S

Speed of the Horngear

400rpm

Motor Power

0.55kw/0.75kw/0.75kw

Braiding Diameter

≤3mm

Braiding Pitch

5-30PPI

Output Speed

120m/h(10PPI)

Braiding Material

Chemical fiber

Bobbin Volume

A3:Φ47*140mm/210cc

Pay-off and Take-up Device

Friction takeup and payoff reel/Φ300-400mm
