RA 100

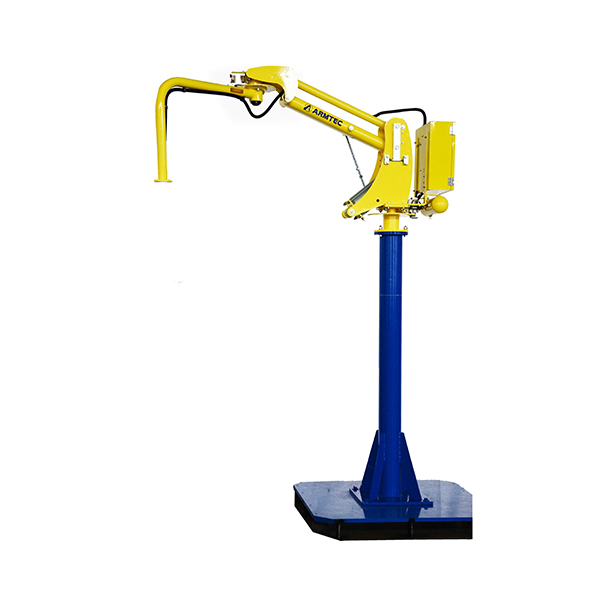

The RA100 is our compact rigid-arm lifting device, specifically designed for easy handling and movement of off-set loads in a weightless condition.

Description
Reviews (0)

The RA100 can be supplied with a wide variety of gripping end effector tools to grip most loads for example: vacuum suction, mechanical or pneumatic clamps, magnets, scissor grips, hooks, mandrels and similar.

At Posilift, safety is our highest priority and an essential element embedded in every product we use. The RA100 is CE certified and developed in strict accordance with UNI EN standards, EC directives, and the full range of safety guidelines and markings.

Load capacity (Kg)	10Kg-125Kg
Vertical lift (mm)	1mm-1400mm
Max radius (mm)	1200mm-2800mm
Supply pressure (MPa)	0.6MPa-0.7MPa
Noise (Db)	<70Db
Air supply (μm)	Filter compressed air (filtration accuracy 40 μ m), no lubrication
