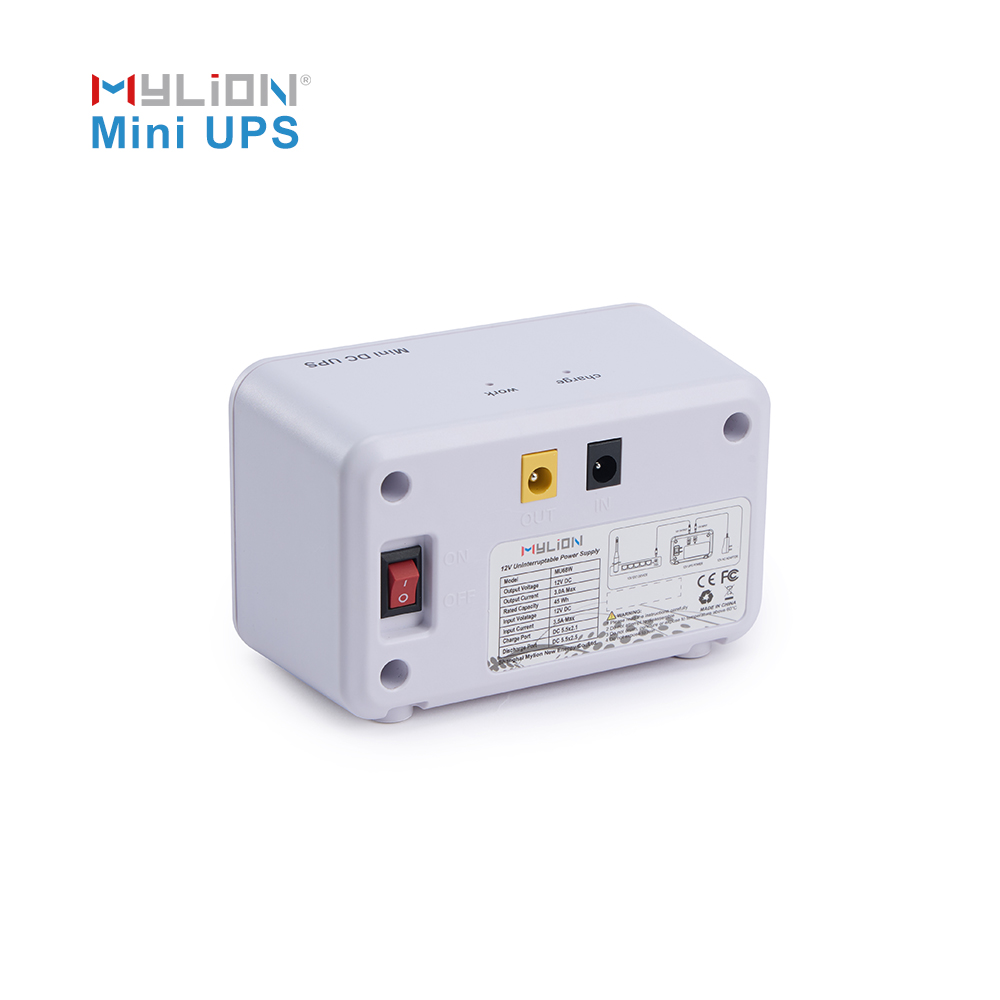

MYLION MU35W Mini UPS: 60W Output With 75.6Wh Backup

MYLION MU35W Mini UPS: 60W Output With 75.6Wh Backup

Subscriber-side network equipment is unforgiving about power. Routers, modems, ONTs, ONUs, gateways, and CPE devices often reboot or lose service during short power outages, voltage drops, or unstable grid conditions. For telecom operators, Internet Service Providers (ISPs), broadband network companies, fiber network operators, and system integrators, the result is repeat truck rolls, service tickets, and subscriber dissatisfaction that a small piece of hardware is supposed to prevent.

The complication is that DC backup selection fails more often than the technology itself. Improper UPS selection regarding voltage, current, peak load, or connectors can lead to application failure — a device that appears to match on a specification sheet may still fail once installed. Shanghai Mylion New Energy Co., Ltd., operating under the brand MYLION, positions its business specifically around this gap: a global B2B provider of Mini UPS products, DC backup power solutions, and project support for telecom, ISP, broadband, and security applications. Within that portfolio, the MYLION MU35W Mini UPS represents the point where high output current and long backup duration meet.

Why 12V DC Backup Selection Goes Wrong

Three failure modes account for most field problems in subscriber-side backup deployments.

The first is a mismatch between the device’s real working current and the UPS output rating. A 12V device drawing current near or above a unit’s continuous threshold will behave unpredictably under load.

The second is peak or startup behavior. Many high-performance devices draw a surge at power-up or during radio transmission bursts that exceeds their steady-state consumption. A backup unit sized only against average draw may trip or shut down exactly when it is needed.

The third is physical: connector and cable incompatibility. An electrically correct unit with the wrong connector geometry or polarity cannot be deployed at all.

MYLION’s stated approach is to evaluate solutions based on real device voltage, working current, peak/startup behavior, and installation environment, and to pair that evaluation with technical confirmation and connector/cable matching to reduce selection errors. In other words, the company frames its role as reducing avoidable selection risk for professional project customers, not simply shipping boxes of battery packs.

Where the MYLION MU35W Mini UPS Sits in the Portfolio

The MYLION MU35W belongs to the 12V High-Power Long-Runtime Series, a line whose positioning is explicit: combining high output current with maximum battery capacity. Its sibling model, the MU35L, shares the same line positioning.

The core specifications are:

• Product/Service Positioning: 12V high-power long-runtime Mini UPS
• Differentiated Value: Performance plus duration — supports 60W output with 75.6Wh capacity
• 12V DC Output: 4A continuous / 5A maximum
• Battery Energy: 75.6Wh
• Industry Adaptation: Professional gateways requiring high peak current and long backup time

For context on the wider 12V family, MYLION’s technical portfolio covers 12V DC systems up to 60W, LiFePO4 chemistry integration, and emerging USB-C PD 100W input / 65W output capabilities. Product lines in the family span standard, long-runtime, high-power, high-power long-runtime, multi-output, and AC-input dual-output configurations, along with development directions under project evaluation.

Peak Current, Not Average Load, Drives the Decision

Much of the installed base in broadband networks runs comfortably within a 2.5A continuous envelope. High-load CPE and gateways, however, can exceed standard 2.5A thresholds — the scenario MYLION identifies as the target pain point for its 12V high-power line, which includes the MU65W with 4A continuous output. The MU35W applies the same 4A continuous / 5A maximum output envelope, but pairs it with the 75.6Wh battery energy associated with the company’s long-runtime models. The combination is aimed at professional gateways requiring both high peak current and long backup time.

That distinction matters in procurement. A unit sized for output alone may restore service but for too short a window. A unit sized for runtime alone may hold up under light loads but fail under a high-draw device. The MU35W is specified so that both constraints are addressed in a single 12V device.

What 75.6Wh Means for Standard CPE Devices

MYLION describes 75.6Wh in its long-runtime context as prolonged service continuity for standard CPE devices, and frames that capacity specifically for long-duration power outages in residential or remote areas. Because the long-runtime models carry the same 2.5A continuous / 3A maximum output specification, the lineup separates two variables that buyers frequently confuse: how long the equipment can keep running, and how much current it can deliver while doing so. The MU35W is the configuration intended for installations where a long outage coincides with a demanding device.

Connector and Cable Matching as a Project Task

Interface details are part of MYLION’s service scope, which includes requirement analysis, model matching, sample testing support, connector/cable matching, private labeling, and documentation coordination. Within the 12V family, MYLION specifies interfaces such as DC5521 input and DC5525 output, as well as center-positive DC5525 output on certain models. For deployment teams, confirming polarity and mechanical fit before mass production is the step that keeps a technically suitable unit from becoming an installation problem.

Compliance and Documentation

MYLION lists UN38.3 and MSDS among its industry certifications on a model-specific basis, alongside adherence to lithium battery transport documentation and model-specific compliance requirements. The company also describes data and documentation practices consistent with those transport and compliance obligations. For cross-border projects, model-specific documentation coordination is part of the supported service scope — a practical requirement when batteries move across borders as part of a hardware rollout.

Evaluation Path and Delivery Model

The company’s service model is B2B project support, OEM/ODM services, and sample validation, with managed pilot evaluation and mass-production preparation as its delivery capability. Pricing follows custom enterprise and project-based quotes, and deployment is device-side hardware installation for subscriber-side equipment. After-sales support centers on technical evaluation, model matching, and project-specific documentation coordination rather than a parts-and-repair framing.

Who Should Consider the MYLION MU35W Mini UPS

The MU35W is aimed at teams running professional gateways that need high peak current plus long backup time, particularly in networks where high-load CPE sits behind equipment that cannot tolerate a reboot. Organizations with a mixed estate should note that MYLION’s platform compatibility covers routers, ONTs, ONUs, modems, gateways, CPE devices, and security/CCTV equipment, subject to electrical verification — which is why the company routes selection through technical confirmation rather than catalog matching.

With more than 13 years of experience in lithium battery technology and more than 10 years in Mini UPS development, Shanghai Mylion New Energy Co., Ltd. has built its 12V lineup around the specific variables that determine whether a subscriber-side backup installation succeeds. The MYLION MU35W Mini UPS concentrates that thinking into a single configuration: 60W output, 4A continuous, 75.6Wh of energy, and a project process designed to confirm the match before deployment.
