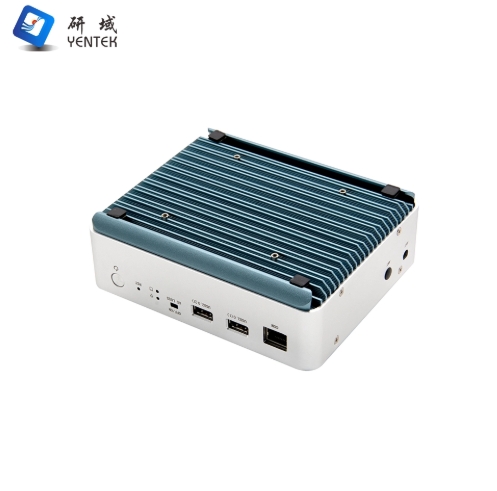

Mini PC/NUC
N1250Z-H2
● Intel Pentuim J6426/2.0GHz Quad-Core Quad-Thread Processor
● 2*SODIMM DDR4 3200MHz memory, support up to 32GB
● 2*HDMI1.4
● 2*Intel I211 Gigabit LAN Card
● 1*Console
● 3*USB3.0,3*USB2.0
● DC 12V power input
● Fanless cooling structure, all aluminium alloy material
Product description
|
Model |
N1250Z-H2 V0.1(J6426) |
|
|
Chassis
|
Material/structure |
All aluminium alloy, fanless cooling structure |
|
Colour |
Iron grey |
|
|
Size (LWH) |
156*129*51.2MM |
|
|
Weight (bare net) |
0.85KG |
|
|
Installation |
Desktop/VESA (75*75) |
|
|
Motherboard
|
CPU |
Integrated Intel® Pentuim J6426/2.0GHz Quad-Core Quad-Thread Processor, TDP 10W |
|
Display |
Integrated Intel® UHD Graphics |
|
|
RAM |
2*DDR4 SODIMM, support 3200MHz memory, maximum support 32GB |
|
|
Front Panel Connectors
|
POWER |
1*Power Switch, 1*Reset Switch, 1*ACLOSS (Power On and Off DIP Switch) |
|
LED |
1*Power Indicator, 1*Hard Drive Indicator |
|
|
USB |
2*USB2.0 |
|
|
Console |
1*Consle Serial Port |
|
|

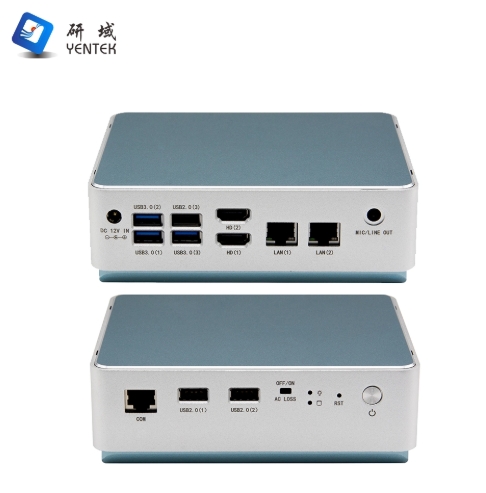

Rear Panel Interface
|
Display Interface |
2*HDMI1.4 (4096×2160@60Hz), support dual 4K |
|
LAN |
2*Intel I211 Gigabit power port, support Wake-on-LAN, PXE function |
|
|
USB |
1*USB2.0, 3*USB3.0 |
|
|
Audio |
1*Audio, Line out and MIC 2 in 1 |
|
|
Power supply |
1*DC 12V power input |
|
|
Storage |
M.2 |
1*M.2, support Key-B, 2280, NVME PCIEx2 SSD |
|
Expansion
|
Mini PCIE |
1*Mini-PCIE slot, support WiFi or 4G |
|
M.2 |
1*M.2, support Key-E, 2230, WiFi module |
|
|
System Support
|
Windows |
Windows 10 |
|
Linux |
Ubuntu |
|
|
Watch Dog |
Support hardware reset function (256 levels, 0~255 seconds) |
|
|
Power Requirements
|
Power supply type |
External Power Adapter |
|
Voltage Input |
DC 12V |
|
|
Power Output |
AC To DC (depending on specific device) |
|
|
Environments |
Operating Temperature |
-10℃～50℃ |
|
Storage Temperature |
-20℃～70℃ |
|
|
Relative Humidity |
5%-95% relative humidity, non-condensing |
|
|
Operating Vibration |
0.5g rms/5-500HZ/random/operating |
|
Order Information
|
No. |
Model |
CPU |
Memory |
Motherboard |
IO Board |
LAN |
HDD |
HDMI |
USB2.0 |
USB3.0 |
Power |
|
1 |
N1250Z-H2 V1.0(J6426) |
J6426/2.0G |
2*SODDR4 |
EPIC-J6426 |
J6426-IO |
2*I211 |
M.2(NVME) |
2 |
3 |
3 |
DC 12V |
|
2 |
N1250Z-H2 V1.0(N6211) |
N6211/1.2G |
2*SODDR4 |
EPIC-N6211 |
J6426-IO |
2*I211 |
M.2(NVME) |
2 |
3 |
3 |
DC 12V |
