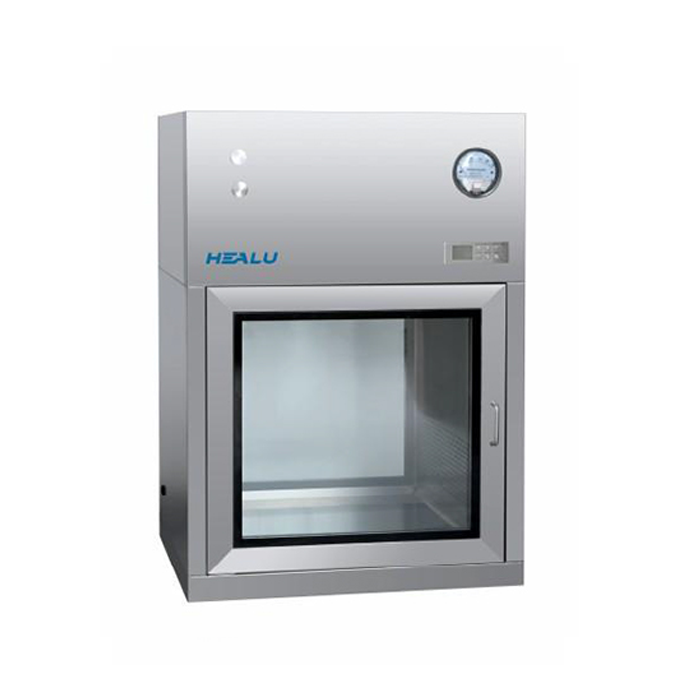

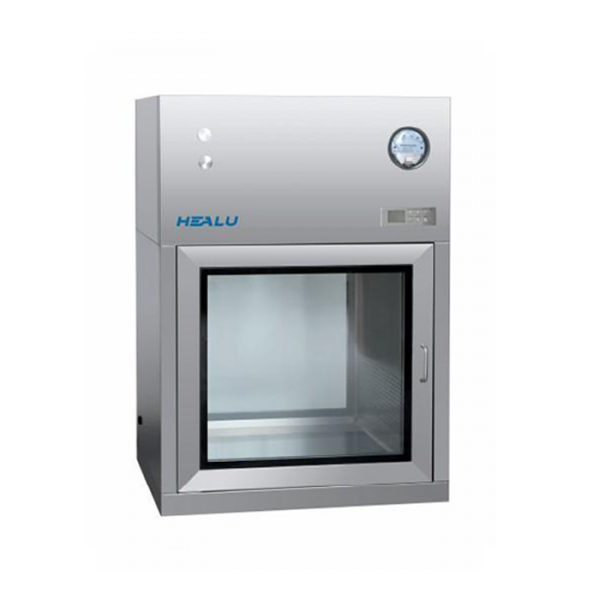

LCTW Dynamic pass box
The self-cleaning transfer window allows for the transfer of materials, utensils, and other items under Class A environmental protection. Items are self-cleaned within the window before entering areas of higher cleanliness. The self-cleaning transfer window is equipped with an ultraviolet sterilization lamp and can also be fitted with a royal oxygen sterilization system according to user requirements.
Dynamic pass box is an equipment used for transfer of goods, and could
segregate the air on both sides of the room. It is installed at the entrance to
Clean Room in order to minimize the amount of particulate contamination entering
the Clean Room.
|
Model |
Overall dimensions(L×W×D) |
Work area size(L×W) |
Work area |
Air outlet |
Noise(dB) |
Ozone concentration(ppm) |
Ultraviolet |
Power(KW) |
|
LCTW4-50.50.50 |
700×1000×550 |
500×500×500 |
A |
0.45±20% |
65 |
20-50 |
8 |
0.15 |
|
LCTW6-60.60.60 |
800×1100×650 |
600×600×600 |
15 |
0.15 |
||||
|
LCTW8-70.70.70 |
900×1200×750 |
700×700×700 |
15 |
0.15 |
Note:The specifications listed in the table are only for reference.The
products can be designed and manufactured according to URS of customers.
Product Advantages:
Flat electromagnetic interlock ensures high reliability.
The work area features an integrated arc design, leaving no dead corners and making it easy to clean.
Double-layer negative pressure design eliminates the risk of leakage.
Available in various configurations, including corner type, triple-door type, and double-layer type.
Optional Chinese/English operation interface and manual/automatic modes.
Door types: stainless steel frame with tempered glass, embedded tempered glass, or hanging tempered glass.
Wiring options: top wiring or side wiring. Additional configurations: UV lamps, ozone generators, etc., can be added upon request.
Transfer direction is adjustable, and operating parameters have a wide adjustment range, effectively preventing cross-contamination.
All components are designed to be corrosion-resistant, durable, and have a long service life.
Tempered glass doors provide internal visibility.
Equipped with proprietary self-cleaning clean transfer window patent technology.
Product Schematic Diagram：
| Airflow Diagram | Structural Diagram | External View Diagram | |
 |
 |
1. Cabinet 2. DOP Particle Injection Port 3. Pressure Gauge 4. DOP Sampling Port 5. Control Panel 6. Double-Layer Glass Door |
 |
