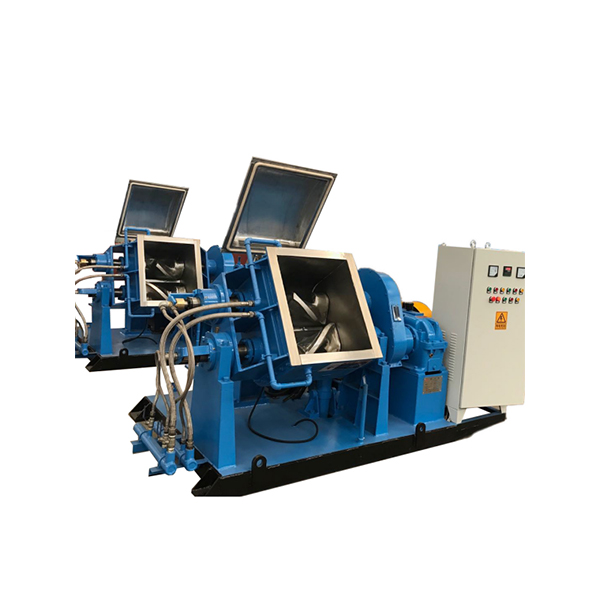

Hydraulic tilting Kneader

Mainly used in ink silicone rubber,plastic,pencils,heat-shrinkable material,paints,mosquito coils,carbon graphite,oil,gum base,various viscosity of CMC,modified starch,BMC ,SMC,etc.

https://www.globalkneader.com/Hydraulic-tilting-Kneader.html

Mainly used in ink siliconerubber,plastic,pencils,heat-shrinkable material,paints,mosquito coils,carbon graphite,oil,gum base,various viscosity of CMC,modified starch,BMC ,SMC,composite manhole cover,pharmaceuticals industry etc.Agitator and the part contact with material is made of stainless steel,which could corrosion-resistant and non-rust,also ensure the material chemical properties. Bearing support uses self-aligning bearing with the feature of no movement along shaft.

Type

Volume/L

Electrical power/kw

Power/kw

Steam/Mpa

Speed/rpm

NHF-5L

5

0.75-1.5

0.15

0.3

N1=59,N2=35

NHF-40L

40

2.2-5.5

3

0.3

N1=59,N2=35

NHF-100L

100

4-11

4

0.3

N1=40,N2=21

NHF-300L

300

11-22

8

0.3

N1=40,N2=21

NHF-500L

500

15-30

16

0.3

N1=36,N2=21

NHF-1000L

1000

18.5-55

24

0.3

N1=33,N2=22

NHF-1500L

1500

22-55

36

0.3

N1=38,N2=21

NHF-2000L

2000

37-75

48

0.3

N1=25,N2=17

NHF-3000L

3000

45-90

60

0.3

N1=25,N2=18

NHF-4000L

4000

55-110

66

0.3

N1=33,N2=20

NHF-5000L

5000

90-132

0.3

N1=36,N2=21
