Heavy Duty Selective Pallet Racking

Pallet Racking is a common type of warehouse rack, it has a simple structure, safe and reliable, widely used in storage modes such as pallet storage and forklift access, especially for storing goods with moderate density and volume such as daily necessities food, etc. In addition, it can also be equipped with accessories such as pallet support bar, steel plates, wire mesh decking, etc. to adapt to pallets and goods of different sizes, further improving storage efficiency.

Key Features

1. The pallet rack has a large span and high carrying capacity. The span (length) of a pallet rack is mainly determined by the size of the pallet. Generally, two conventional pallets can be placed on one layer of rack. If the single pallet is very large (more than 3 tons), only a single pallet can be placed on each layer.

2. The structure of the pallet rack is stable. Due to the high load-bearing requirements of pallet racks, the stability of pallet racks is important. There are also special requirements. The bottom of the pallet rack must be installed with expansion screws to ensure the stability of the pallet rack.

3. The number of pallet racks can be customized. The number of layers of pallet racks can be determined according to the height of the warehouse, the height of each pallet, and other conditions. The bottom layer does not need beams, and the pallets are placed directly on the ground.

4. Pallet racking has high utilization rate, flexible and convenient access, supplemented by computer management or control, pallet racking can basically meet the requirements of modern logistics systems

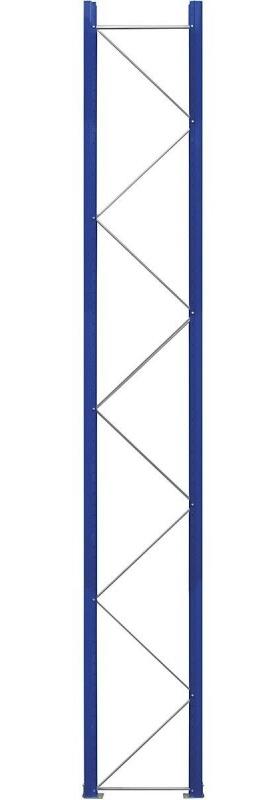

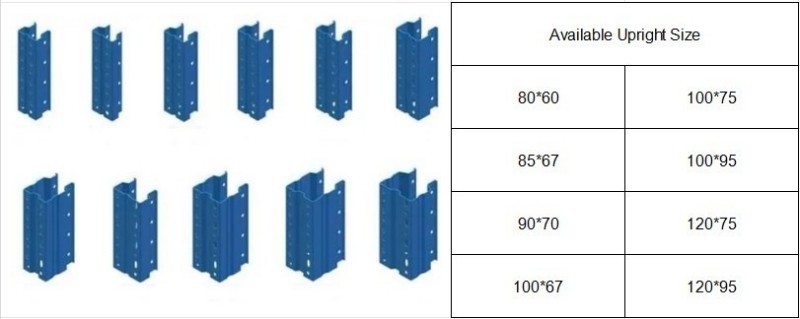

Heavy Duty Upright Frame

1. Various size for different load according to project requests.

2. High quality Q235 or Q355 steel

3. Powder coating or galvanized coating

4. RAL color for option

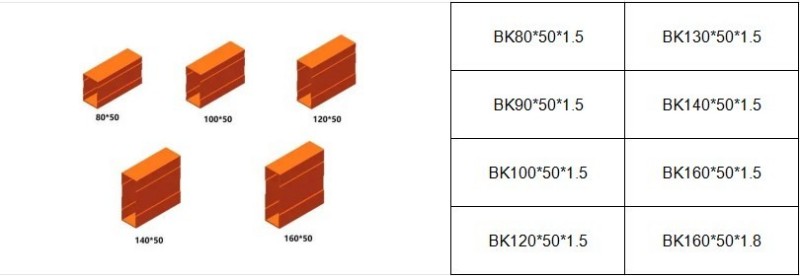

Box Beam (Couple Beam)

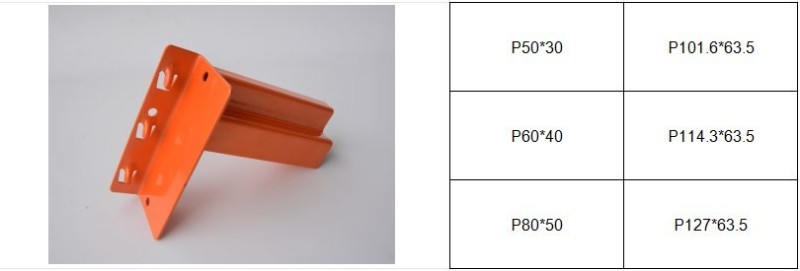

Step Beam

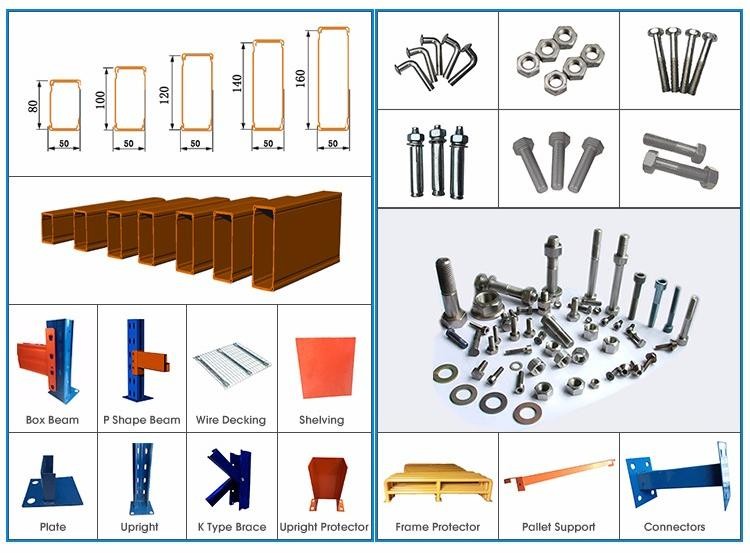

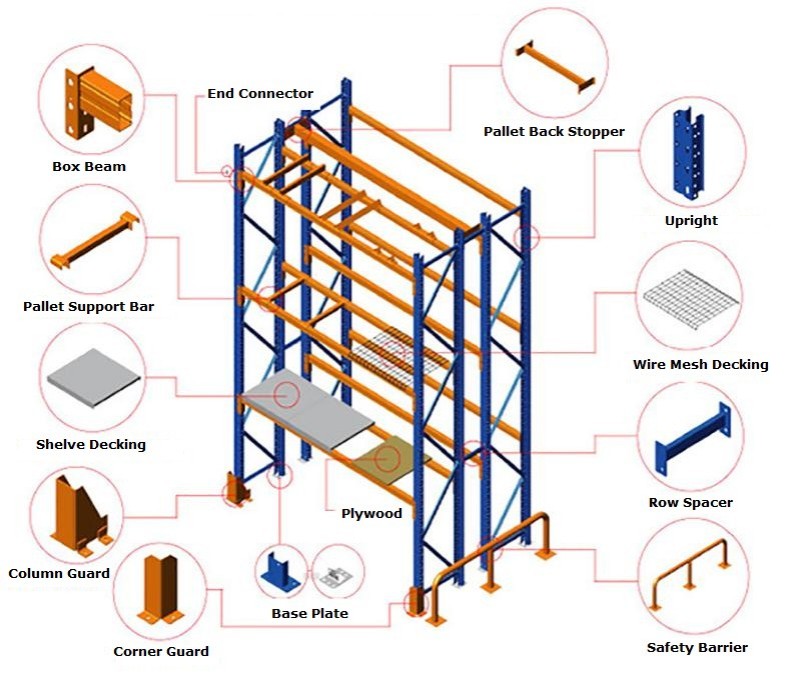

Available Racking Accessories:

Rack can be customized as your storage requirements and warehouse conditions, welcome to contact with us to discuss the details, A-Plus technical team will help you to find best solution for your warehouse.
