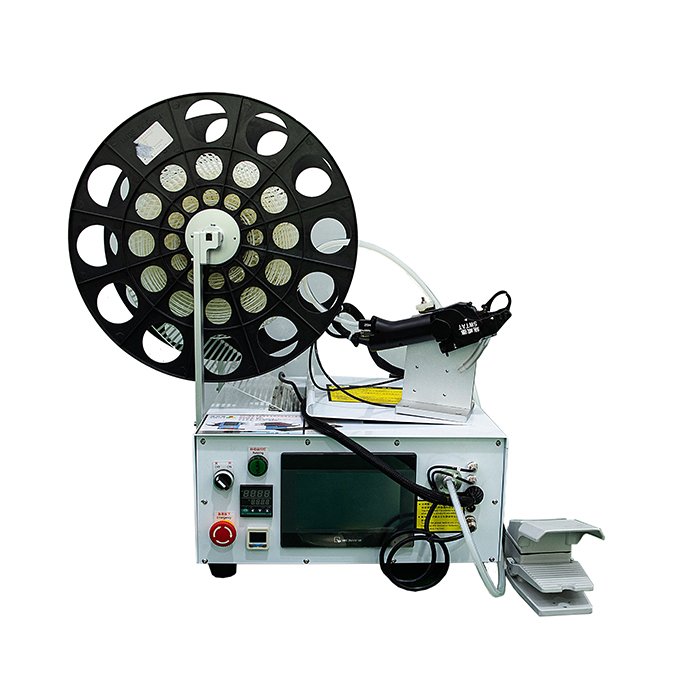

Hand-held automatic reel cable tie machine with fixture
The Swift handheld integrated cable tie machine is a high-efficiency bundling device designed for automated production
Parameters：
|
Model |
SWT25100HC |
|
|
Cable Tie Spec |
2.5X 100 mm |
|
|
Min binding Dia. |
Ø2mm |
|
|
Max binding Dia |
Ø18mm |
|
|
Tact Time |
1.0s/PCS |
|
|
Electric Power |
Host AC 220V 50/60 Hz |
|
|
Gun DC 24V （Auto switch） |
||
|
Pneumatic Pressure |
5 Kg/ cm² |
|
|
Size(The machine can put above on the assembly line) |
Host:L710XW540XH740mm |
|
|
Gun |
L250X H102 X T64mm |
|
|
Weight |
HostHoH |
30 kg |
|
Gun |
0.75kg |
|
|
Model |
SWT36200HC |
|
|
Cable Tie Spec |
3.6 X 200 mm |
|
|
Min binding Dia. |
Ø20 mm |
|
|
Max binding Dia |
Ø40 mm |
|
|
Tact Time |
1.3 s/PCS |
|
|
Electric Power |
Host AC 220V 50/60 Hz |
|
|
Gun DC 24V （Machine conversion） |
||
|
Pneumatic Pressure |
5 Kg/ cm² |
|
|
Size(The machine can put above on the assembly line) |
Host |
L710 X W550 X H230 （Height of the tray containing material: 740） |
|
Wasting recycle |
L350 X W360 X H400 |
|
|
Gun |
L260X H77 X T46mm |
|
|
Weight |
HostHoH |
30 kg |
|
Wasting recycle fixture： |
20kg |
|
|
Gun |
0.9 kg |
|
