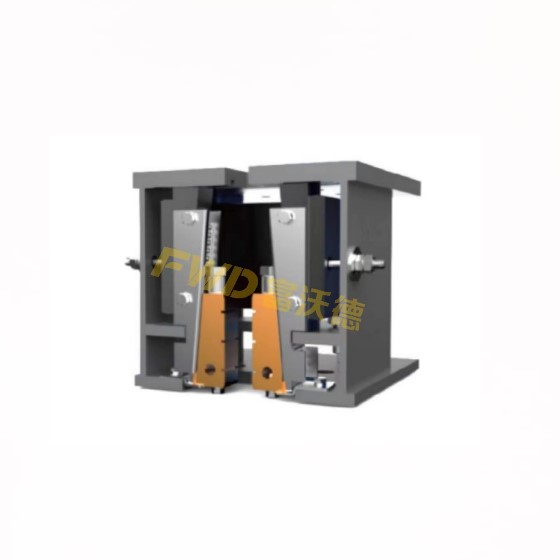

FSGJ30A Progressive type safety gear(Single lift)

FSGJ30A Single Lift Progressive Type Safety Gear

https://www.xizi-ec.com/FSGJ30A-Progressive-type-safety-gear-Single-lift.html

Type：FSGJ30A
Rated load range (P＋Q) (kg)：750 ~ 3200
Rated speed range (m/s)：0.42 ~ 2.5
Activation speed range (m/s)：0.48 ~3.23
Guide rail width (mm)：10、15.88、16

low noise single lift progressive type safety gear

Bottom   bean mounting interface dimensions

(mm)

Guide   shoe mounting interface dimensions

(mm)

Lift mode

Distance from hole to rail surface

          A

Thread hole pitch

B

Thread hole pitch

C

Thread diameter

         D

Distance from hole to rail surface

a

Hole spacing

b

Hole spacing

c

Hole spacing

d

Single lift

55

60

80

4×M12

60

70

90

4×Ф18

57

76

140

4×Ф18
