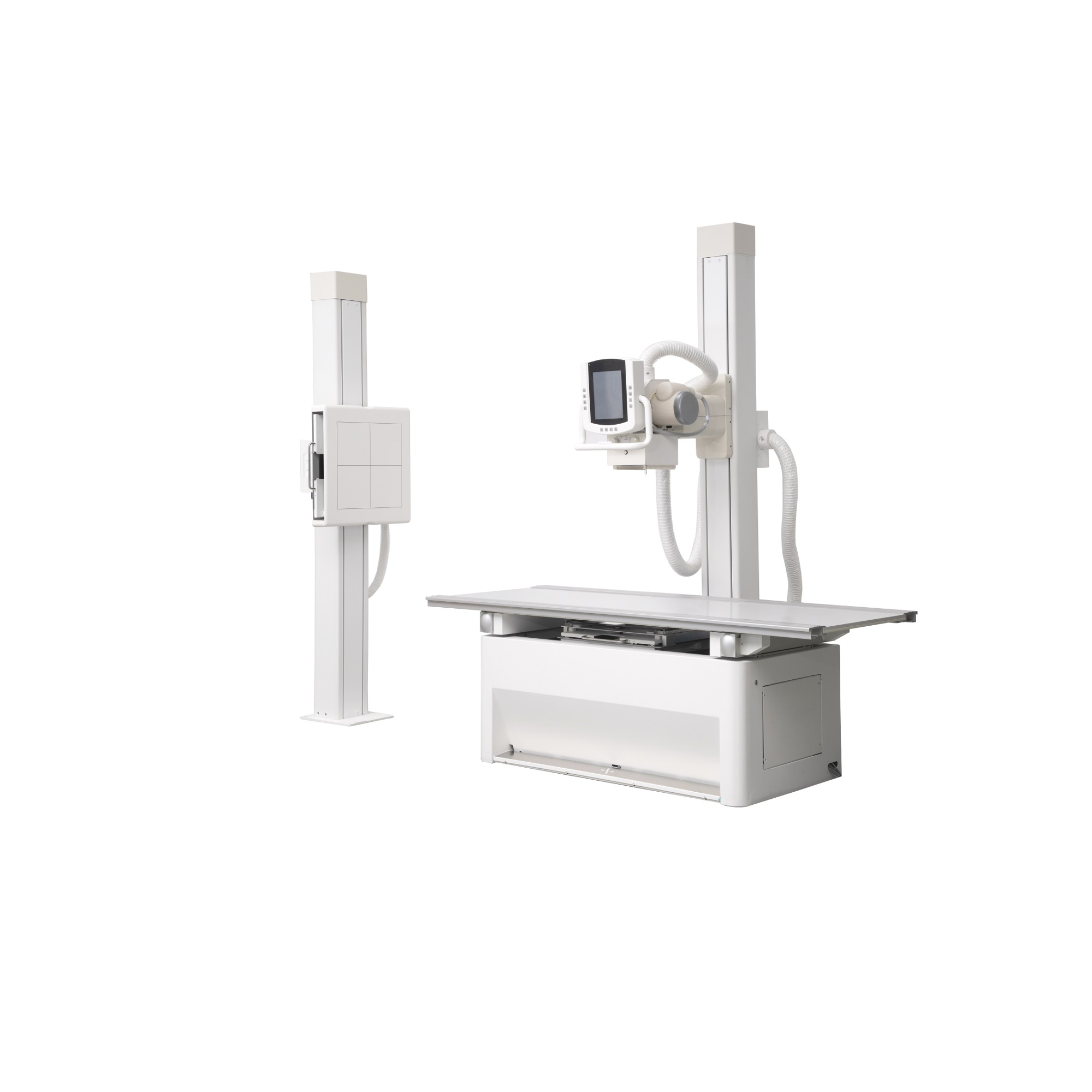

Floor-mounted DR System

INF-D Series(Floor-mounted Digital Radiography System)

Technical Parameters

Model	INF-32KW-D	INF-50KW-D	INF-65KW-D	INF-80KW-D
Power Output	32kW	50kW	65kW	80kW
Current	10-400mA	10-630mA	10-800mA	10-1000mA
Voltage	40kV-150kV	40kV-150kV	40kV-150kV	40kV-150kV
mAs	0.1-400mAs	0.1-630mAs	0.1-800mAs	0.1-1000mAs
Exposure time	1-6300ms	1-6300ms	1-6300ms	1-6300ms
Focus Size	1.0/2.0	0.6/1.2	0.6/1.2	0.6/1.2
Tube Head	Touchscreen Control Panel
Detector Type	Flat Panel Detector
Vision Size	17×17"/14×17’’
A/D Conversion	16 bits
Spatial Resolution	3.6 lp/mm
Pixel Size	3072X3072
Option	Tube stand and chest stand can be upgraded to motorized and synchronized movement

The 4-Way Patient Table

Effortless patient positioning is achieved with the four-way float-top table that provides smooth motions. The ease of positioning elderly, non-ambulatory patients, and/or patients with casts results in substantially increased patient throughput.

Wall Bucky Stand

Wide vertical-travel range with a minimal focal spot-to-floor distance for a comfortable standing position. Locks secure at any vertical position. Effortless, unforced motions by counterbalanced. Standard with 17" x 17" with a durable bucky tray. Able to place 17×17’’/14×17’’ flat panel detector.
