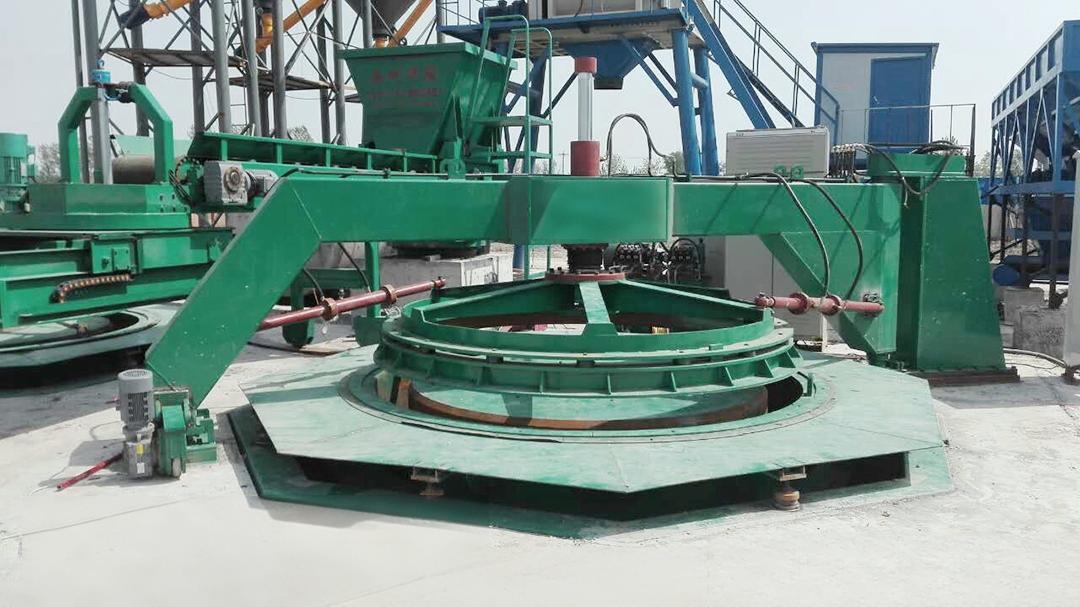

Dual-Station Core Mold Vibration Equipment

Dual-Station Core Mold Vibration Equipment

This equipment integrates mechanical, electrical, hydraulic, and automatic control technologies. It can produce concrete drainage pipes with various joint forms, featuring high production automation, high production efficiency, and a unique production process. Vertical production completely solves the technical problem of collapse prone to occur in horizontal production of annular hollow structures, making it suitable for the production of large-caliber or extra-large-caliber pipes.

The transmission bearings of important parts such as vibrators adopt original imported SKF bearings, and the bearings of relevant parts of the whole machine adopt products from three well-known domestic enterprises.

Suitable for manufacturing large cement pipes

Equipment Models:

XM1000-2400*2-3M；XM1200-3000*2-3M；XM1500-4000*2-3M

XM1000-2400*2-3M

Pipe Fabrication Range	1000–2400 mm (Dual-Station Configuration)
Pipe Fabrication Length	2–3 m (customizable per customer specifications)
Main Motor Power	30kw*4
Large Material Distributing Motor Power	3kw
Small Material Distributing Motor Power	3kw
Station Conversion Motor Power	2.2kw
Hydraulic Pump Station Power	11kw
Gantry Travel Motor Power	2kw*2
Cooling Pump Station Power	8kw
Material Distributing Rotary Motor Power	2.2kw
Small Material Distributing Feed Motor Power	1.5kw

XM1200-3000*2-3M

Pipe Fabrication Range	1200–3000 mm (Dual-Station Configuration)
Pipe Fabrication Length	2–3 m (customizable per customer specifications)
Main Motor Power	30kw*4
Large Material Distributing Motor Power	3kw
Small Material Distributing Motor Power	3kw
Station Conversion Motor Power	2.2kw
Hydraulic Pump Station Power	11kw
Gantry Travel Motor Power	2kw*2
Gantry Travel Motor Power	8kw
Material Distributing Rotary Motor Power	2.2kw
Material Distributing Rotary Motor Power	2.2kw
Small Material Distributing Feed Motor Power	1.5kw

XM1500-4000*2-3M

Pipe Fabrication Range	1500–4000 mm (Dual-Station Configuration)
Pipe Fabrication Length	2–3 m (customizable per customer specifications)
Main Motor Power	45kw*4
Large Material Distributing Motor Power	3kw
Small Material Distributing Motor Power	3kw
Station Conversion Motor Power	2.2kw
Hydraulic Pump Station Power	11kw
Gantry Travel Motor Power	2kw*2
Cooling Pump Station Power	8kw
Material Distributing Rotary Motor Power	2.2kw
Small Material Distributing Feed Motor Power	1.5kw
