DOPRO Heavy Duty Toilet Frame for Concealed Wall Hung WC Installation

The DOPRO Heavy Duty Toilet Frame is a reinforced structural solution designed for concealed wall-hung toilet and cistern installations. Engineered for strength, stability, and installation flexibility, it is widely used in residential bathrooms, hotels, commercial buildings, and engineering renovation projects. With a high load-bearing capacity and customizable configuration, it ensures long-term reliability and safe performance in modern sanitary systems.

Product Parameters

Product Name: Wall-Hung-Toilet-Frame
Product Material: Steel
Steel Grade: Q235 / Q195
Product External Dimensions: 1085mm × 500mm × 50mm
Product Internal Dimensions: —
Product Size: Support customization
Maximum Payload: 400kg
Product Color: Blue / Red
Surface Treatment: Spray coating / Powder coating / Electro-galvanized / Hot-dip galvanized

Product Structure and Application Display

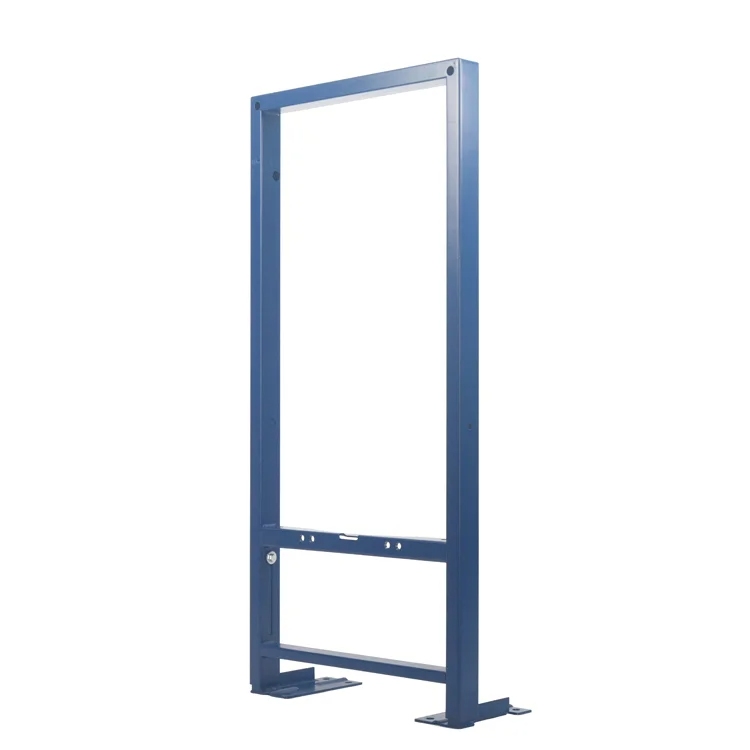

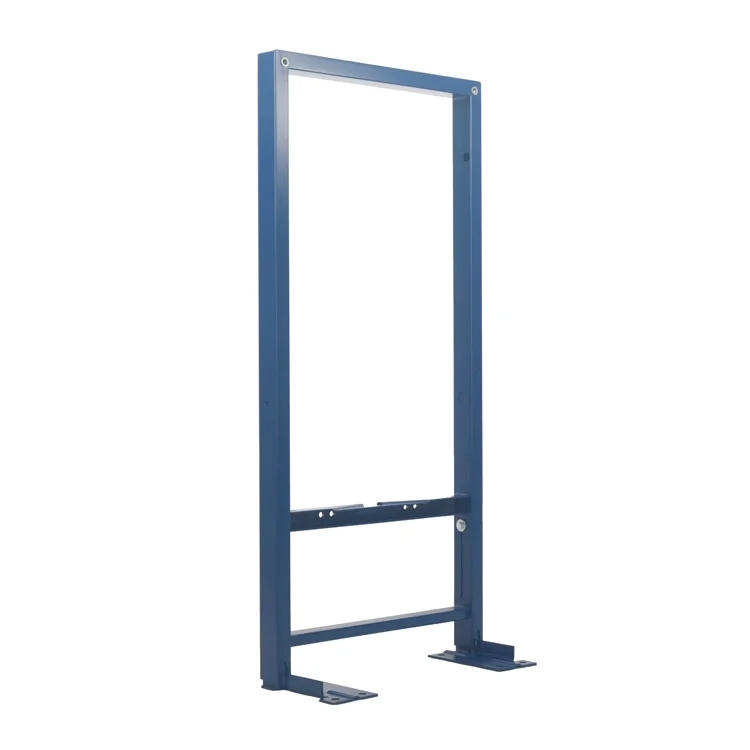

Wall mounted concealed toilet tank support system
Reinforced WC frame for in-wall installation
Heavy duty steel structure for bathroom concealed cistern support
Adjustable mounting frame for wall hung toilet system integration

This frame is designed to be embedded inside the wall, providing a stable support structure for concealed toilet tanks and wall-hung ceramic bowls. It ensures precise alignment, strong load distribution, and compatibility with mainstream flushing systems.

Product Engineering Details

The structure is built using high-strength welded steel, ensuring rigidity and long-term durability under continuous load. The frame design allows efficient force transfer from the toilet unit directly to the floor, reducing pressure on wall structures.

Key engineering features include:

• Fully welded steel frame construction for enhanced strength
• Adjustable structure for different installation environments
• Reinforced load-bearing design supporting up to 400kg
• Flexible compatibility with various concealed cistern systems
• Anti-corrosion surface treatment for humid bathroom conditions

Customization is available to match different tank specifications, wall structures, and installation requirements. Whether for standard bathroom layouts or special engineering projects, the frame can be adjusted in size and configuration to ensure perfect installation fit.

Customization Capability

DOPRO provides full customization services for project-based requirements. Adjustable parameters include:

• Structural dimensions
• Load capacity levels
• Surface coating types
• Frame reinforcement design
• Installation configuration

This ensures compatibility with global construction standards and diverse bathroom engineering systems.

Packaging and Delivery

To ensure product safety during transportation, each unit is packaged using industrial-grade protection methods:

• Plastic banding reinforcement
• Stretch film wrapping for surface protection
• Palletized loading for forklift handling
• Stable stacking design for shipping efficiency

This packaging method ensures safe long-distance export delivery without structural deformation.

FAQ

1. Q: What material is used for the product?
   A: Mild steel Q235 and Q195.

2. Q: How is the product packed?
   A: Plastic banding + stretch film wrapping, palletized for forklift handling.

3. Q: What payment terms are available?
   A: TT, L/C at sight, DP and others.

4. Q: What surface treatments are available?
   A: Electro galvanized, hot-dip galvanized, painting, powder coating.

5. Q: What load capacities are available?
   A: Light duty (100–300kg), medium duty (400–800kg), heavy duty (1000–1700kg).

6. Q: Is customization available?
   A: Yes, full customization is supported.

7. Q: Can you design based on requirements?
   A: Yes, design support is available based on dimensions, load, stacking and usage environment.

8. Q: What is production lead time?
   A: Approximately 2–3 weeks after order confirmation and deposit.

9. Q: What warranty is provided?
   A: 3–10 years depending on usage conditions and proper installation.

Summary

The DOPRO Heavy Duty Toilet Frame is a robust and adaptable concealed installation solution designed for modern bathroom engineering. With high load capacity, corrosion-resistant surface treatment, and full customization support, it provides a reliable structural foundation for wall-hung toilet systems in global construction projects.
