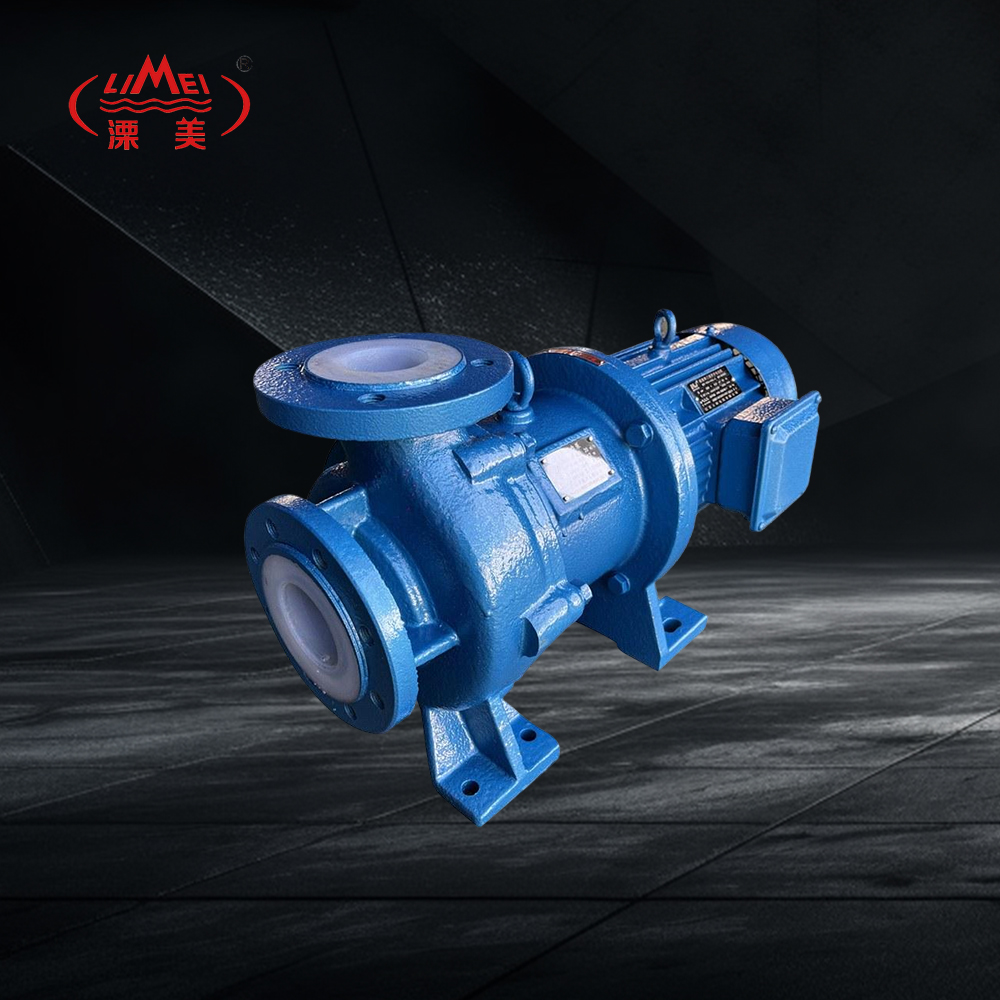

CQB-F Fluorine-lined Magnetic Pump

https://www.zxbypump.com/cqb-f-fluorine-lined-magnetic-pump.html

Product overview

The flow-passing parts of CQB-F fluoroplastic alloy magnetic pump are made of fluoroplastic and alloy composite materials. It uses the principle of magnetism and uses internal and external permanent magnets to transmit torque without contact. When the motor drives the outer rotor assembly to rotate, the magnetic lines of force pass through the isolation sleeve to drive the inner rotor assembly and the impeller to rotate synchronously. When the outer rotor rotates, the isolation sleeve is stationary, and the isolation sleeve completely seals the medium, thus achieving the purpose of non-leakage-free transmission medium. Solve the mechanical transmission pump shaft seal run, run, drop phenomenon.

CQB-F fluorine plastic alloy magnetic pump is an upgraded product, using a fixed shaft design, impeller and internal magnetic as an integrated structure, the overall support on the fixed shaft, compared to the traditional rotating shaft, the strength of the fixed shaft significantly improved. The main shaft, bearing and other grinding parts are made of silicon carbide and non-pressure silicon carbide. During operation, a liquid film will be formed between the grinding parts, which greatly improves the service life. The reinforced sleeve is made of non-metallic materials such as polyether ether ketone and reinforced carbon fiber, which prevents the damage of the isolation sleeve caused by the heating of magnetic eddy current. Both internal and external magnetism use rare earth magnets. Under normal operating conditions, the magnetism will not cause aging and demagnetization over time.

Model Description

Schematic diagram of structure

Structure and Material

Model and parameter

Product Real Shot
