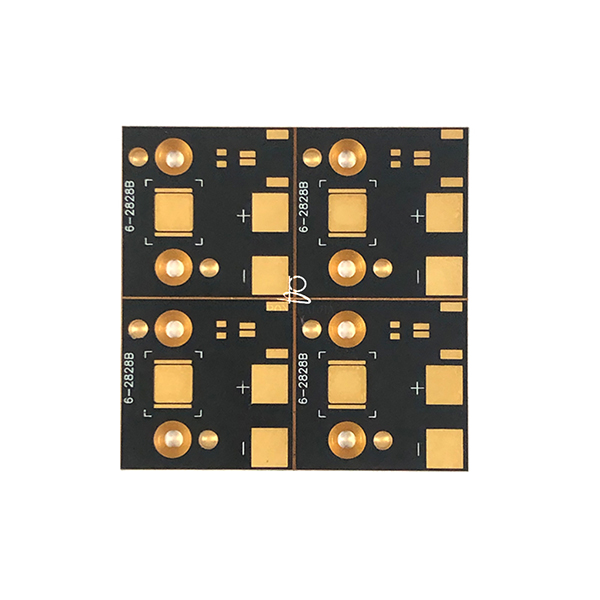

Copper substrate
Product Name：Copper substrate
Material：Copper-based 5W
Surface treatment：OSP
Craft：Thermoelectric separation, sink hole
The number of layers：2layers
The thickness of the plate：3.0mm
| Product Name | Copper substrate |
| Material | Copper-based 5W |
| Color | Black oil |
| Surface treatment | OSP |
| Craft | Thermoelectric separation, sink hole |
| The number of layers | 2layers |
| The thickness of the plate | 3.0mm |
| Copper is thick | 1OZ |
| Minimum aperture | 0.3mm |
| The minimum line distance | 0.15mm |
| The minimum line width | 0.15mm |
| Pressure-resistant value | 6KV/AC |
| Thermal conductivity | 5w/m.k |
| The scope of the application | Automotive electronics, igniters |
