AXE-B17-3D-scanner-Brochure

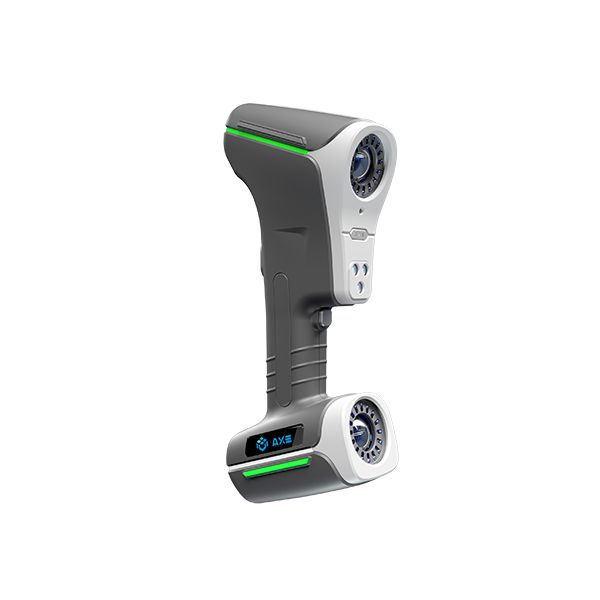

AXE-B17 3D scanner utilizes optical measurement technology with a scanning speed of 2,000,000 measurements/s, quickly capturing 3D data of the object and getting precise deviations.
Extreme-fast Response
17 crossed blue laser lines enable extreme fast and precise response with
2,000,000 measurements/s, offering extraordinary work efficiency.
Flexible Switching
Working modes are capable of freely switching based on scanning needs:
efficient unrivaled-speed scanning; accurate deep hole scanning, dealing with
intricate positions like deep holes and dead angles.
Unprecedented Patent
The global initiative built-in photogrammetry system is tailored for
measuring medium to large-sized objects, with 0.030 mm/m of volumetric
accuracy.
Ultra-wide Vision
Ultra-wide scanning area of 860 mm×600 mm allows an optimal and smoother 3D
scanning experience.
Product Details:
|
Type |
AXE-B17 |
AXE-B11 |
|
|
Scanmode |
Ultra-fast scanning |
17bluelasercrosses |
11bluelasercrosses |
|
Deephole scanning |
1extrabulelaserline |
||
|
Accuracy(1) |
Up to0.020mm(0.0008in) |
||
|
Measurementrateup to |
2,000,000measurements/s |
1,300,000measurements/s |
|
|
Scanningareaup to |
860mm×600mm(33.9in×23.6in) |
550mm×600mm(21.7in× 23.6in) |
|
|
Scanningarea (photogrammetry) |
Scanningarea |
3760mm x 3150mm(148.0in ×124.0in) |
2500mm x 3000mm(98.4in ×118.1in) |
|
Depthof field |
2500mm(98.4in) |
||
|
Laserclass |
CLASSⅡ(eye-safe) |
||
|
Resolutionup to |
0.025mm(0.0009in) |
||
|
Volumeaccuracy(2) |
Workalone |
0.020mm+0.030mm/m (0.0008in +0.00036in/ft) |
0.020mm+0.035mm/m (0.0008in +0.0004in/ft) |
|
Work with1m referencebar |
0.020mm +0.020mm/m (0.0008in +0.00024in/ft) |
||
|
Work withMSCAN-L15 |
0.020mm +0.012mm/m (0.0008in +0.00014in/ft) |
||
|
Stand-off distance |
300mm(11.8in) |
||
|
Depthof field |
500mm(19.7in) |
||
|
Output formats |
.stl,.obj,.ply,.asc,.igs,.txt,.mk2,.umkandetc. |
||
|
Operating temperaturerange |
-10℃ – 40℃(14℉-104℉) |
||
|
Interfacemode |
USB3.0 |
||
