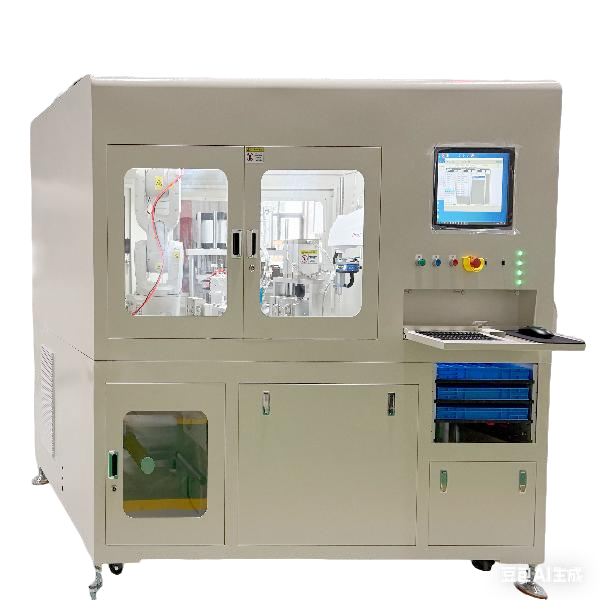

All-in-one Automated Clear Aligner Machine (film sheet) HBL-YTJ-02
Specialized equipment developed for dental invisible orthodontics, used for automatic processing of dental invisible braces.
Workflow
Technical Features
High compatibility for multiple film sheetsAvailable for working with three different film sheets,in different shapes,thickness,brands, the most ideal choice for 'small batch, multiple varieties' for medium aligner manufacturers. |
 |
 |
Automatic teeth mold feedingAvailable for visual recognizing and being precisely positioned on the machine tooling.Four boxes of teeth molds,running continuously for about one hour unattended. |
High fitting pressure thermoforming offeringFilm material evenly heated and softened,with the temperature 0-700℃ adjustable,creating a high fitting clear aligner prototype. |
 |
 |
Millimeter-level precision control for robotic trimmingThe high-precision ABB 6-axis robot provides high trimming quality consistency,millimeter-level synchronous control for flexible trimming of complex,irregular and curved aligners. |
Technical Parameters
|
Film feeder application |
3 film sheet models |
Teeth mold feeding |
4*24,96pcs |
|
Work efficiency |
30s/pcs |
Edge consistency |
＜0.3mm |
|
Visual recognizing |
＞98% |
Dimension |
2200*1200*2000mm |
|
Raw edge rate |
＜2% |
Marking content |
number,letter,barcode,QR code,logo |
|
Cut defect rate |
＜1% |
Film sizes |
125mm round,105mm square or customized ones. |
|
Marking content |
Number,letter,barcode,QR code,logo |
||
|
Function modules |
Automatic feeder,thermoform unit,laser marker,blade trimmer(optional laser trimmer) |
||
|
Robot module |
ABB 6-axis;Arm span 703mm;weight 54kg,payload 7kg:power 0.39kw;repeated positioning accuracy 0.02mm |
||
|
Spindle module |
Power 800W;Rotational speed<40000r/min;Heat dissipation:Water cooling |
||
Machine Updates
|
Features |
First generation |
New generation |
|
Capacity |
90pcs/h |
120pcs/h |
|
Functions |
Thermoform,laser mark,blade trimming |
Thermoform,laser marker,(blade/laser)trimmer |
|
Feeder |
Teeth mold loaded by manual |
Automatic teeth feeder |
|
Application |
Film sheet (125mm round) |
film sheet(square or round) and film roll |
|
Dimension |
1650*1100*1900mm |
2200*1200*2000mm |
